Superwinch SX12SR 12,000 lb Winch with Synthetic Rope (Black) - 2019-2026 Ford Ranger
SKU 1712204
or about $ 83.16/mo with Shop Pay Installments, subject to eligibility check at checkout
In stock. Ships free
Will it fit your truck?
Fits: 2019-2026 Ranger · Not sure? Call (205) 491-0010 or ask a fitment question. We check it by VIN for free.
Details

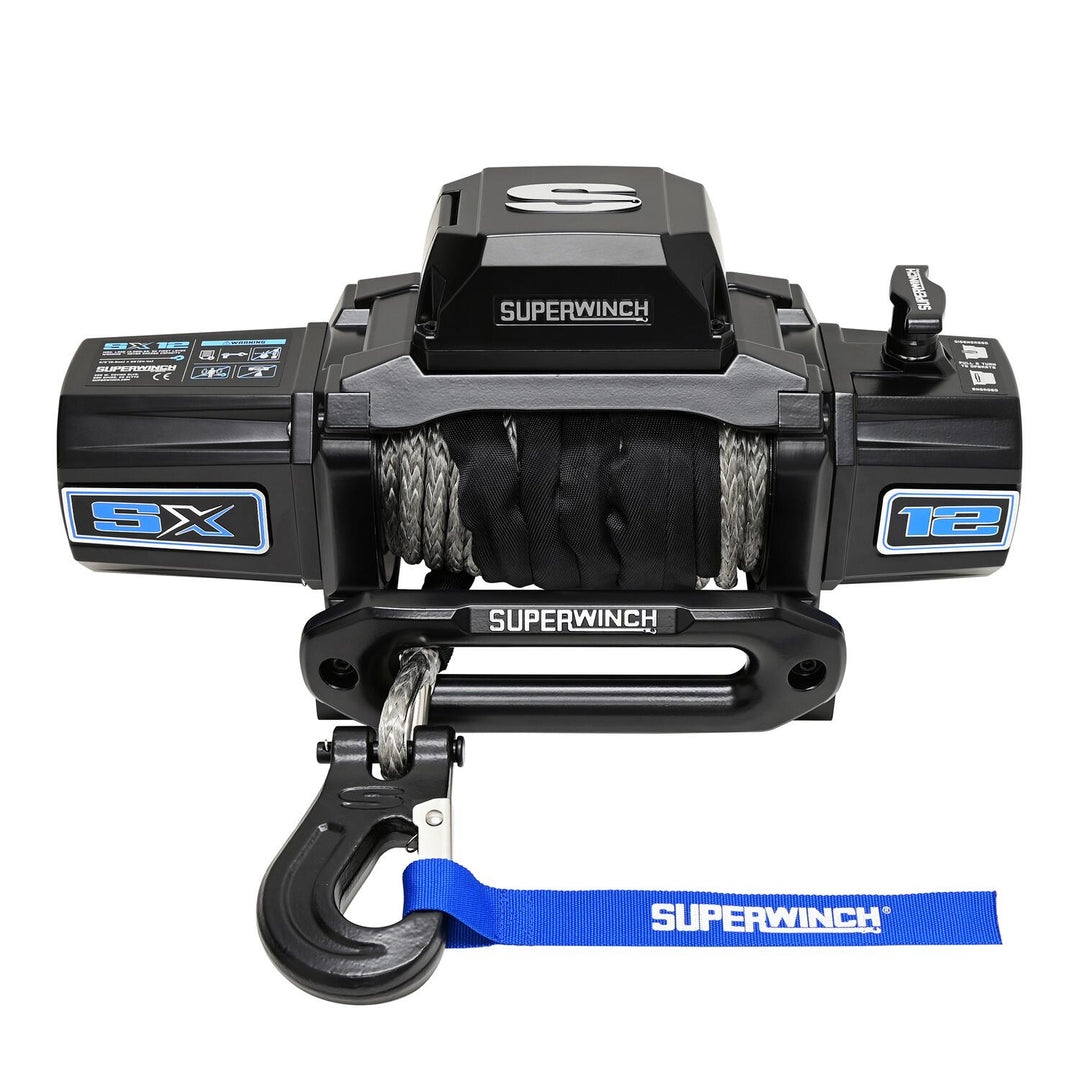

The Superwinch SX12SR is a 12,000 lb 12V DC electric recovery winch with synthetic rope (part number 1712204, Black). Installed on a winch-ready front bumper or winch mounting plate, it fits 2019-2026 Ford Ranger. Made by Superwinch.
Overview
The SX12SR is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8" diameter synthetic rope, a 12' lighted wired remote, and wireless handheld remote. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX12SR synthetic rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.
What's included
- 12,000 lbs. capacity
- 6.0 HP sealed motor
- 80' - 3/8" UV coated synthetic rope
- Relocatable die-cast aluminum control box
- Includes wireless remote & 12' wired remote with integrated lithium-ION rechargeable LED flashlight
- Ergonomic pull-and turn clutch handle
- Clockable gear box
- 3-stage planetary gearing with 231:1 ratio
- Patented drum light
- Drum diameter measures 2.5"
- Heavy duty clevis winch hook
- Aluminum hawse fairlead
- 100% full load holding automatic mechanical brake
- IP68-rated waterproof and dustproof
- Durable metallic graphite powder coat finish
Fitment details
This is a universal winch and is not vehicle-specific. It mounts to the 2019-2026 Ford Ranger using a winch-ready front bumper or a winch mounting plate rated to accept a 12,000 lb-class winch. Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm). Rope: 3/8 in x 80 ft synthetic. Motor: 6.0 HP, 12V DC. Gear System: 3-stage planetary, 231:1. IP68 waterproof and dustproof. Warranty: Limited Lifetime Mechanical / Limited 7 Year Electrical.
Fitment
- Vehicle: Ford Ranger (non-Raptor)
- Years: 2019-2026
- Generation: Universal (fits P375 and Next-gen)
- Engine: N/A
Installation
TCcustoms installs this at both our Bessemer and Pell City, Alabama shops. Contact us to schedule installation, or we can ship your part anywhere in the country.
Fitment
Fits: 2019-2026 Ranger
Every order gets a human fitment check before it ships. If something looks off for your truck, we call you first.
