Superwinch SX12 12,000 lb Winch with Steel Wire Rope (1712200) - 2024-2026 Ford Ranger Raptor

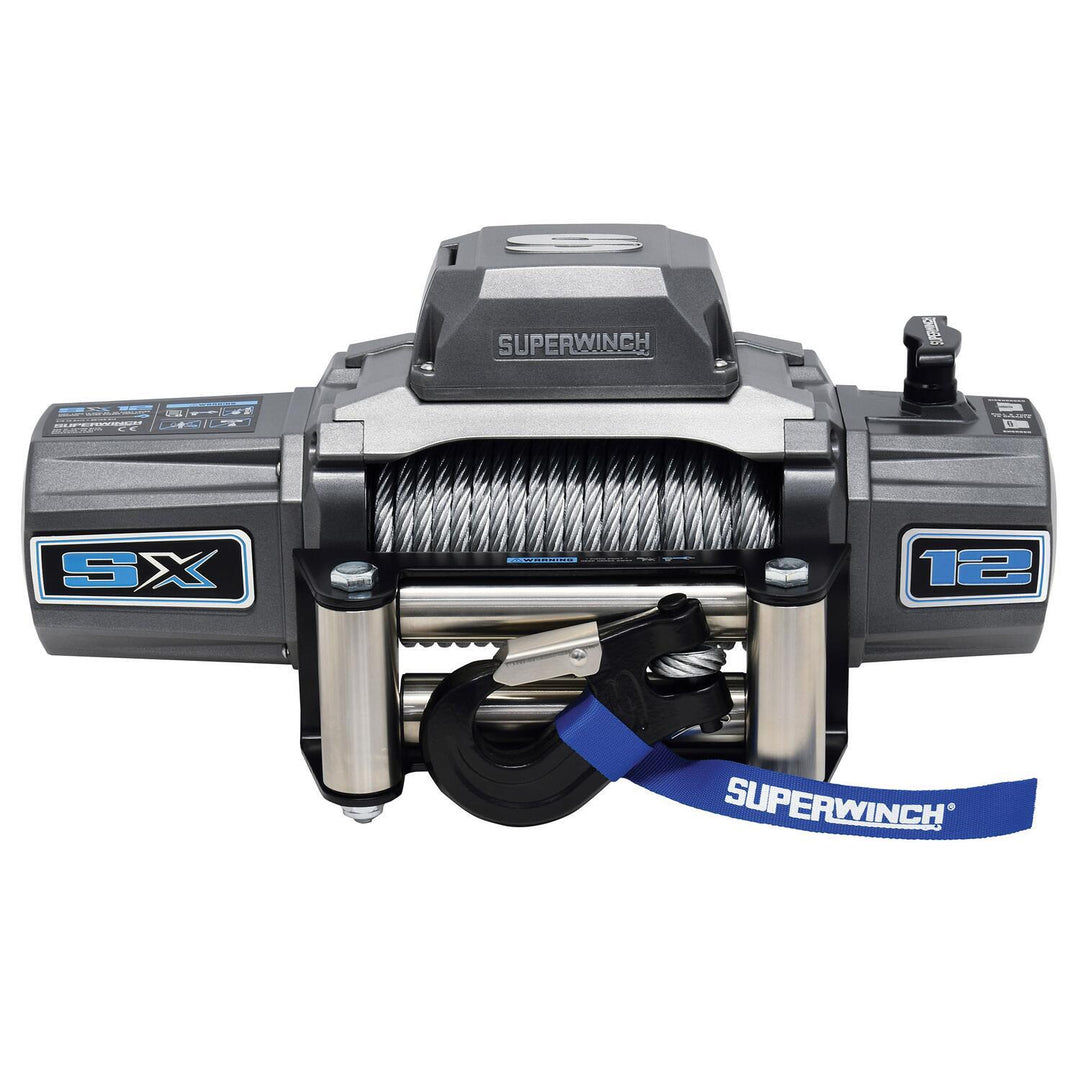

The Superwinch SX12 (part number 1712200) is a 12,000 lb, 12V DC electric winch with 3/8" steel wire rope and a metallic graphite finish that fits the 2024-2026 Ford Ranger Raptor when paired with a compatible winch mount. Made by Superwinch.

Overview

The SX12 is engineered to provide users the ideal combination of power, speed, innovation, and proven performance they demand from Superwinch. Innovative features such as a patented drum light, relocatable die-cast aluminum control box, 3/8" diameter wire rope and a 12' lighted wired remote that comes standard. SX Series winches exceed the most demanding standards of today's modern vehicles, while delivering an affordable and stylish design which incorporates many class leading features not found in other high-performance winches. Providing 12,000 lbs. of raw pulling power, the new SX 12 wire rope model has a sleek modern look and is built to last. With an IP68 rating for dustproof and waterproof operation, and a durable metallic graphite powder-coated finish this winch has it all.

Features:

• 12,000 lbs. capacity
• 6.0 HP sealed motor
• 85' - 3/8" wire rope
• Relocatable die-cast aluminum control box
• 12' wired remote with integrated lithium-ION rechargeable LED flashlight
• Ergonomic pull-and turn clutch handle
• Clockable gear box
• 3-stage planetary gearing with 231:1 ratio
• Patented drum light
• Drum diameter measures 2.5"
• Heavy duty clevis winch hook
• Stainless steel roller fairlead
• 100% full load holding automatic mechanical brake
• IP68-rated waterproof and dustproof
• Durable metallic graphite powder coat finish

Fitment details

Specifications:

• MPN: 1712200
• Winch Type: Electric
• Rated Line Pull: 7,500 - 12,500 lbs
• Voltage: 12V DC
• Motor: 6.0 HP, 12V DC
• Gear System: 3-stage planetary
• Gear Ratio: 231:1
• Clutch: Pull and turn clutch handle
• Brake System: 100% Full-load holding automatic mechanical brake
• Rope Material: Steel Wire
• Rope Length: 3/8 in x 85 ft (9.5mm x 26m)
• Fairlead: Stainless Steel 4-Way Roller
• Remote Type: Wire
• IP Rating: IP68 Waterproof and Dustproof
• Mounting Bolt Pattern: 10in x 4.5in (254mm x 114.3mm)
• Color: Graphite
• Winch Hook: Heavy-Duty, Clevis Pinned Latched
• Line Speed: 68 Amps Motor Draw/23.4 FPM (7.13 MPM)

Fitment

• Vehicle: Ford Ranger Raptor
• Years: 2024-2026
• Engine/bolt pattern: Requires a Ranger Raptor-compatible winch mount / bumper (winch mounting bolt pattern 10in x 4.5in)

Installation

The SX12 features a relocatable die-cast aluminum control box and a clockable gear box for flexible mounting. Warranty: Limited Lifetime Mechanical / Limited 7 Year Electrical.

TCcustoms installs this at both our Bessemer and Pell City, Alabama shops. Contact us to schedule installation, or we can ship your part anywhere in the country.

Fits: 2024-2026 Ranger Raptor

Every order gets a human fitment check before it ships. If something looks off for your truck, we call you first.
