ReadyLift - 8.5" Lift Kit W/ Falcon Shocks And Radius Arms - Ford Super Duty Diesel F250/F350 4WD 2017-2022

The ReadyLift 8.5" lift kit (part number 49-27851) is built for the 2017-2022 Ford F-250/F-350 Super Duty 4WD Diesel. ReadyLift is one of the most trusted names in leveling and lift kits, engineered to give your truck a level or lifted stance and room for larger tires while keeping the factory ride. TCcustoms is an authorized ReadyLift dealer.

Details

ReadyLIFT, a leader in the lifted suspension market, is proud to announce the release of our new 8.5" Coil Spring "Baller" Lift Kit for 2017-2022 4WD Ford Super Duty F250/F350 trucks equipped with a 6.7L Power Stroke® diesel engine. This lift kit is designed to provide an elevated experience for drivers who are looking to take their vehicles to the next level. This new kit includes our 4-corner 1.1 Falcon shocks and Tubular Radius Arms built to handle everything customers throw at Super Duty trucks. The coil spring system allows for increased tire sizes and widths along with providing improved ground clearance on a head-turning stance! The ReadyLIFT 8.5" Coil Spring Lift Kit delivers superior ride quality, improved ground clearance for off-road adventure, and an impressive stance that draws envious looks wherever you go. This exclusive lift kit includes all necessary components including heavy-duty coil springs, brake line relocation brackets, extended sway bar links, bump stop extensions, radius arms, and more! The all-new big lift kit includes four Falcon 1.1 Monotube shocks designed and tuned specifically for this application. Features and Benefits: · Fits 2017-2022 Ford Super Duty F-250 / F-350 Power Stroke® diesel 4WD. o 2020-2022 provides 8.5" Coil Spring Lift Kit With (4) Falcon 1.1 Monotube Shocks. o 2017-2019 provides 8" Coil Spring Lift Kit With (4) Falcon 1.1 Monotube Shocks. · All-new and improved Driveline Indexing System preserves driveline angles. · Tubular Radius Arms help to correct the caster angle. · Max Tire 38x13.50 on 10" wide wheel with +12 offset. Note: Single rear wheels only. Diesel trucks only -not compatible with gas engine trucks.

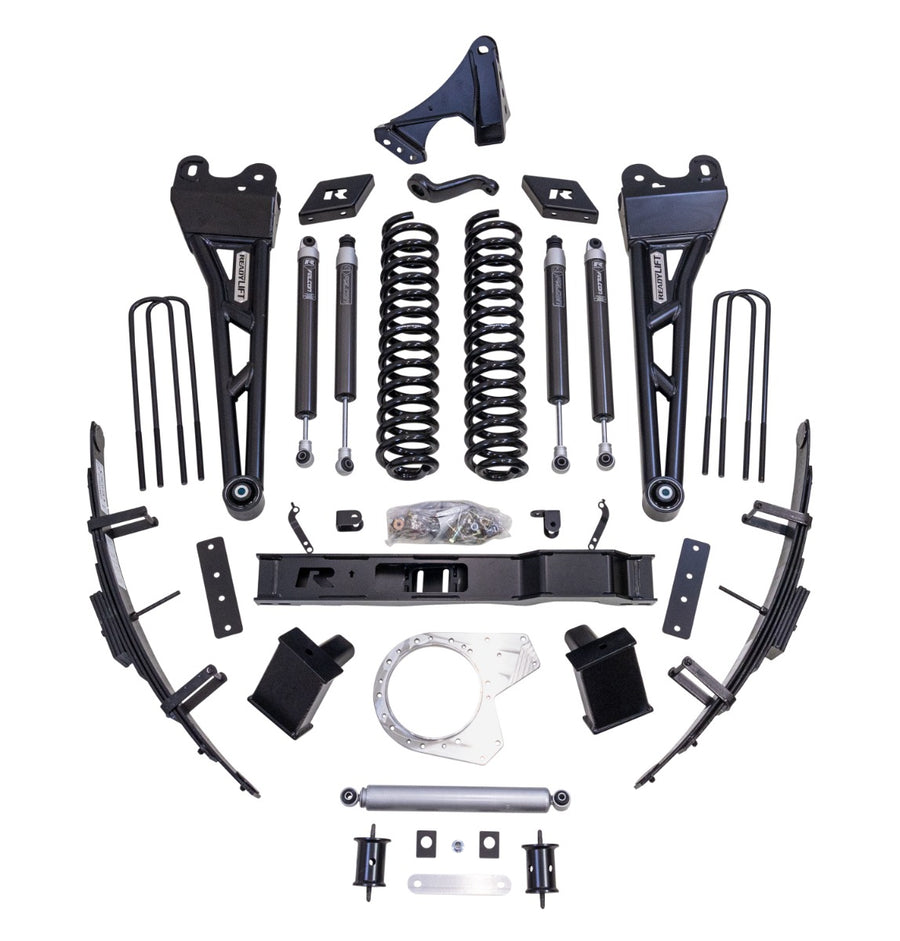

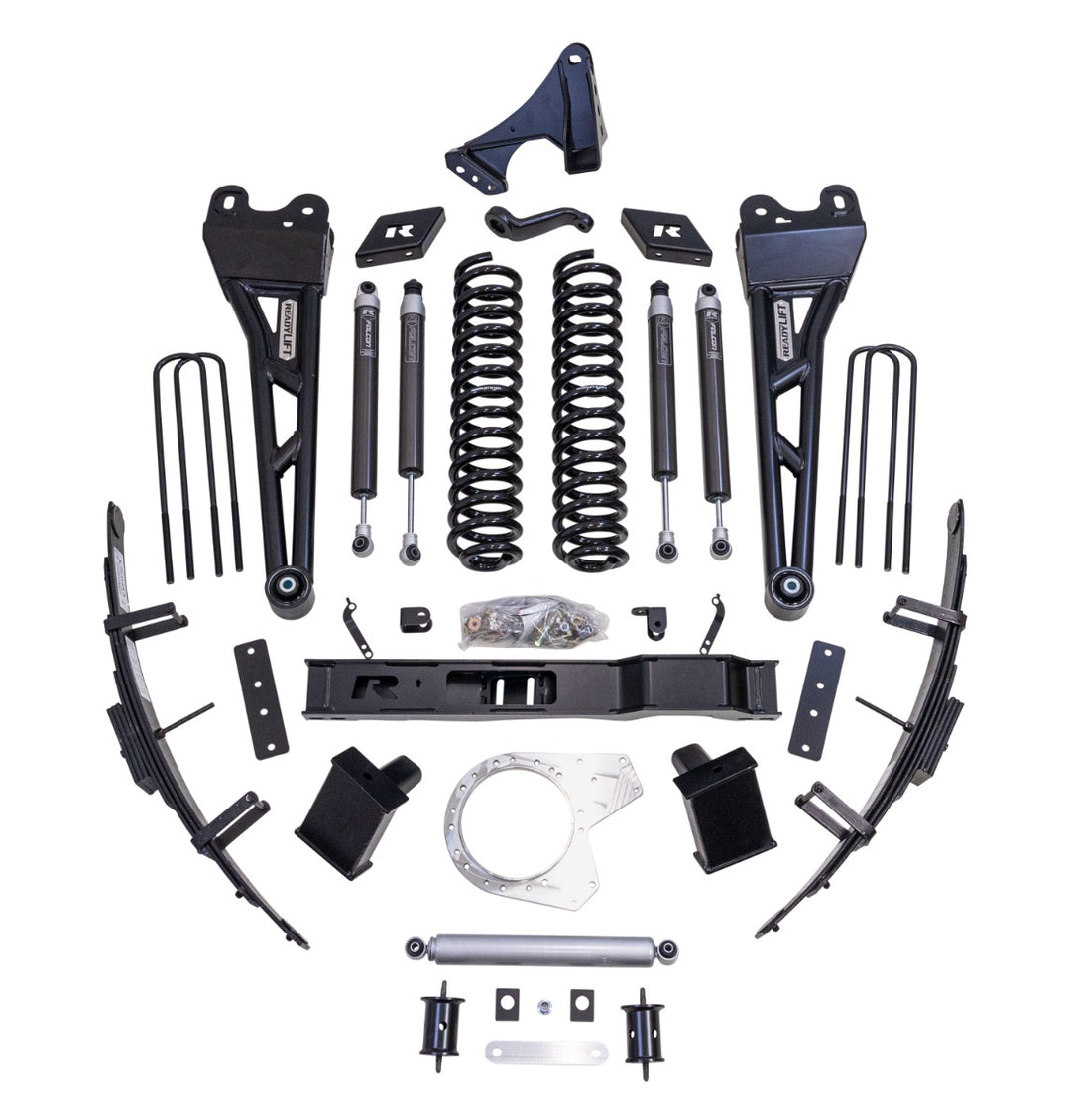

Kit components

LIFT SPRING
DROP PITMAN ARM
TRACK BAR BRACKET
TRACK BAR BRACKET WASHER
FRONT BUMP STOP EXTENSION
FRONT SWAY BAR BRACKET, DRIVER
FRONT SWAY BAR BRACKET, PASSENGER
RADIUS ARM, DRIVER
RADIUS ARM, PASSENGER
RADIUS ARM CRUSH SLEEVE
BRAKE LINE BRACKET DRIVER
BRAKE LINE BRACKET PASSENGER
STEERING STABILIZER BRACKET FRAME
STEERING STABILIZER BRACKET TIE ROD
STEERING STABILIZER CONE WASHER
REAR SWAY BAR BRACKET
REAR BLOCK DRIVER
REAR BLOCK PASSENGER
U-BOLT
U-BOLT HARDWARE PACK
FRONT SHOCK
REAR SHOCK
STEERING STABILIZER
TRANSFER CASE CLOCKING RING
TRANSMISSION CROSS MEMBER
CARRIER BEARING SPACER
ADD-A-LEAF PACK
HARDWARE PACK

Tire and wheel fitment

38" Maximum tire diameter
37x12.50 for no rub on a 9" wide wheel with 0 offset
38x13.50 on 10" wide wheel with +12 offset
18" - 37X12.5R18
20" - 37X12.5R20
22" - 325/60R22
Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.
Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

Fitment

• Vehicle: 2017-2022 Ford F-250/F-350 Super Duty
• Model year(s): 2017, 2018, 2019, 2020, 2021, 2022
• Model(s): F-250, F-350
• Drivetrain: Four-wheel drive (4WD)
• Engine: Diesel
• Fits four-wheel-drive (4WD) models.
• Diesel models.

Safety and installation notes (from ReadyLift)

SAE J2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

Installation alignment note: Your vehicle may require alignment after product installation. You may incur additional costs to align the vehicle.

Installation headlamp aim note: In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation. You may incur additional costs to adjust the headlamp system.

Installation ADAS note: If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle's systems for proper aim and function after product installation. In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS. You may incur additional costs to adjust ADAS systems.

Do it yourself: Please read instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product

Installation

ReadyLift estimated installation time: 13 Hours +/- 1 hour (excluding alignment and wheel/tire assembly). TCcustoms installs ReadyLift kits at both our Bessemer and Pell City, Alabama shops. Contact us to schedule installation, or we can ship your kit anywhere in the country.

Fits: 2017-2022 F-250, 2017-2022 F-350

Every order gets a human fitment check before it ships. If something looks off for your truck, we call you first.
