This is a ReadyLift Lift Kit that allows for 8.0'' of lift. This kit is designed for 2017-2019 Ford F250/F350 Diesel . Part Number = 49-2780
2017-2019 Ford Super Duty F250 (SRW) 4WD
Diesel Trucks Only - F250 Only.
8" Lift Kit includes (4) SST3000 shocks
Includes front steering stabilizer
Includes ReadyLIFT-tuned coil springs providing superior quality ride
Includes radius arm drop bracket to maintain proper axle geometry
For use with trucks with 1-piece drive shaft
Allows for 37" and taller tires
Diesel engines only.
ReadyLIFT designed this all-new 8" Lift kit for new 2017-2019 Ford Super Duty F250 4WD owners seeking a rugged and durable lift kit that wil provide a tall stance without compromising the factory ride.. Our new 49-2780 8" lift solution features new comfort-riding 8" lift front coil springs, a heavy-duty fabricated steel front track bar relocation bracket that matches our new ReadyLIFT-branded fabricated steel radius arm drop brackets. This great new system for new Super Duty trucks includes everything you need to get the lift job done right without cutting any corners. This kit includes sway bar drop brackets, an OEM style drop pitman arm, bump stop extensions, brake line extended brackets and even includes a steering stabilizer to truly optimize your truck's handling qualities. This exciting new 8 inch lift system also includes (4) new ReadyLIFT SST3000 extended length shocks which when combined with this lift kit, provides an incredibly great ride!
Rear lift is achieved with our heavy-duty fabricated steel 6" tall rear lift blocks featuring OEM-style bump stop landings. We team the blocks up with a pair of double add-a-leaf springs to get a matching rear height to compliment the front lift. Included with this kit is a new transmission cross member and drive shaft spacer to optimize overall drive train geometry and provide smooth performance under acceleration.
49-2780 is for use on trucks with a one-piece drive shaft.
Can allow for 37-38 inch tall tires.
Diesel engines only.
NOTE: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang.
38" Maximum tire diameter
37x12.50 for no rub on a 9" wide wheel with 0 offset
38x13.50 on 10" wide wheel with +12 offset
18" - 37X12.5R18
20" - 37X12.5R20
22" - 325/60R22

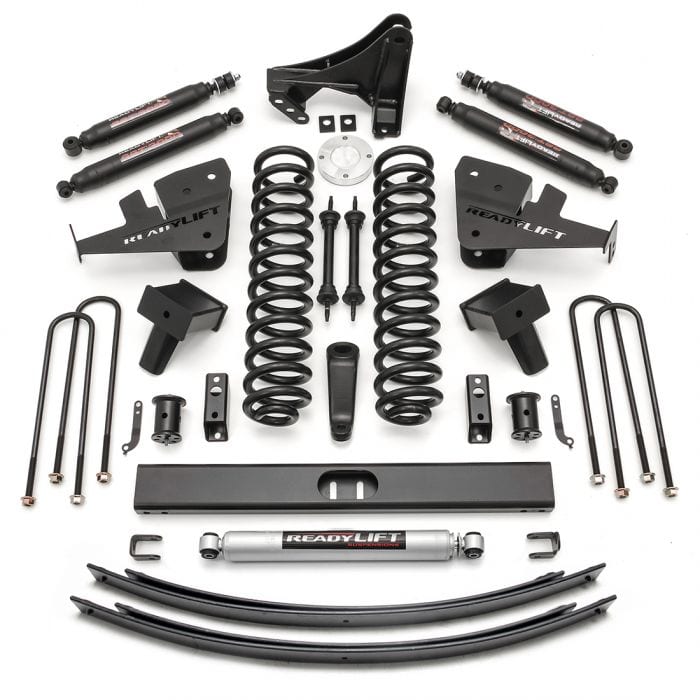

8" Lift springs
Heavy Duty fabricated steel front track bar bracket
ReadyLIFT-branded heavy duty fabricated steel radius arm drop brackets
OEM style drop pitman arm
Longer sway bar end links
Sway bar drop brackets
Bump stop extensions
Brake line extension brackets
6" tall fabricated steel rear lift blocks with longer u-bolts
(4) ReadyLIFT SST3000 shocks
(1) front steering stabilizer
(1) Transmission/Tranfer Case crossmember
DO IT YOURSELF!
Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.
