This is a ReadyLift Lift Kit that allows for 6.5" of lift. This kit is designed for 2011-2020 Ford F250/F350 Diesel . Part Number = 49-2768
2017-2019 F250 F350 4WD 6.5" Lift Kit System.
Diesel Trucks Only
Max Tire: 38".
Includes SST3000 Shocks
Made In U.S.A.
For trucks with two-piece drive shafts.
Great lift for a great value!
ReadyLIFT offers a 6.5" Lift Kit system made to fit 2017-2019 F250 Ford Super Duty 4WD trucks with a two-piece drive shaft that includes our SST3000 shocks. This 6.5" lift kit gives owners an excellent lift kit option that will raise F250 trucks a total of 6.5" in front. This provides for maximum tire clearance and unbeatable performance. Install up to 38" tall off road tires with no problems. This new complete lift kit delivers uncompromised ride and handling performance!
NOTE: For use with 2-piece drive shafts only.
NOTE: Kit includes four (4) SST3000 shocks.
NOTE: The lift blocks in this kit are not designed to work with aftermarket or factory add-on air spring/load leveling kits that attach to the bump stop tangs. Use of this type of air bag system will void all block warranties and can cause failure of the block bump stop tang.
The 49-2768 6.5" Lift Kit includes custom wound coil springs engineered to provide an incredibly great ride while also enhancing off-road driving performance. The kit includes radius arm drop brackets that allow you to use your factory radius arms and corrects caster in the process. To lift the rear we include OEM style cast iron rear lift blocks to bring the rear level with the front while providing a factory-like ride. Other great components to this kit include a drop pitman arm, track bar bracket, sway bar end links, drive shaft spacer, and all hardware is included.
Features & Benefits:
Maximum wheel and tire size 22 x 12 with +12 offset with 38x13.50" tire
6.5" of front lift for additional ground clearance and ability to clear up to 38" tires.
Radius arm drop brackets allow you to use your factory radius arms and corrects caster.
Custom wound coil springs for maximum off-road and on-road performance.
5" lift rear blocks and add-a-leaf provides comfortable lift while maintaining a quality ride.
Includes extended sway bar end links, bump stop extensions, alignment cams, drop pitman arm and extended brake line brackets.
Increased Off Road Ability with An Incredibly Great Ride!
38" Maximum tire diameter
37x12.50 for no rub on a 9" wide wheel with 0 offset
38x13.50 on 10" wide wheel with +12 offset
18" - 37X12.5R18
20" - 37X12.5R20
22" - 325/60R22

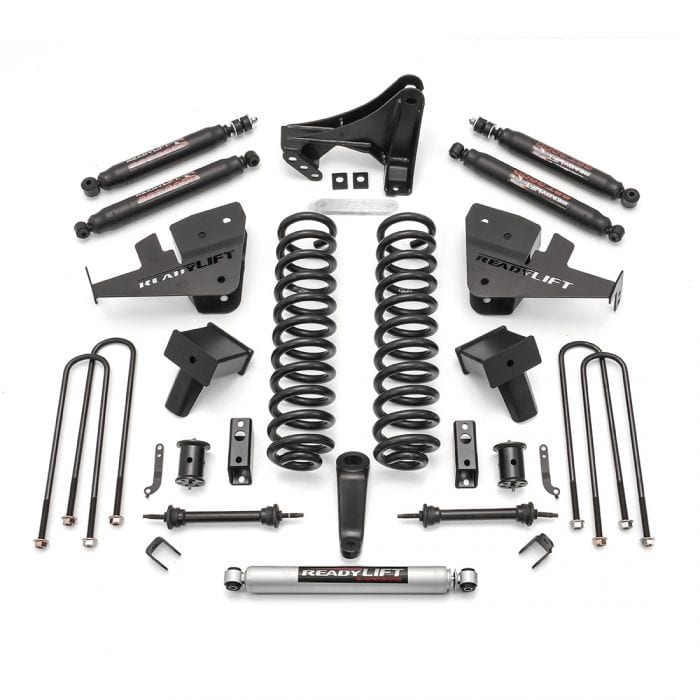

Two performance coil springs
Two CNC machined billet aluminum lower spacers.
One drop pitman arm.
One OEM style cast iron front track bar bracket.
Two radius arm drop brackets.
Two bump stop extensions.
Two extended length front sway bar end links.
Two OEM style cast iron rear lift blocks.
Longer u-bolts and hardware.
Four SST3000 Shocks.
DO IT YOURSELF!
Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.Download Pdf Instructions
