ReadyLift - 4" Coil Spring Lift Kit With Falcon Shocks - Ford Super Duty Diesel 4WD 2017-2022 F-350 And F-250

The ReadyLift 4" lift kit (part number 49-27420) is built for the 2017-2022 Ford F-250/F-350 Super Duty 4WD Diesel. ReadyLift is one of the most trusted names in leveling and lift kits, engineered to give your truck a level or lifted stance and room for larger tires while keeping the factory ride. TCcustoms is an authorized ReadyLift dealer.

Details

ReadyLIFT Suspension is now offering our first 4" Coil Spring Lift Kit fitting 2017-2022 Ford Super Duty F250/F350 4WD Power Stroke trucks. The 49-27420 includes front and rear Falcon 1.1 Monotube series performance shocks with our venerable front track bar relocation bracket, radius arm drop brackets, and rear fabricated blocks. This gives Super Duty owners an excellent alternative for lifting their trucks to fit larger tires. The coil spring system allows for increased tire sizes and widths along with providing improved ground clearance on a head-turning stance! Many consider this lift height the sweet spot for Super Duty driving dynamics and maximum tire size while maintaining everyday usefulness. This optimum lift height allows for up to 37" tall tires.

The coil spring kit delivers a great ride and handling performance! The key ingredients to improving your ride are the new specially engineered coil springs teamed with Falcon shocks and a track bar relocation! This combination is more than just a lift kit, this is a performance and ride-enhancing kit that will really delight consumers with how well it rides and performs both on and off-road. The ReadyLIFT 4" Coil Spring lift kit system for 2017-2023 Ford Super Duty trucks also includes model-specific brake line extension brackets, our time-tested bump-stop extension brackets, and new front sway bar frame mount extension brackets to keep the factory sway bar in the proper position. If you want tough looks and a smooth but controlled ride, then you want the new Super Duty 4" Coil Spring Suspension Kit System.

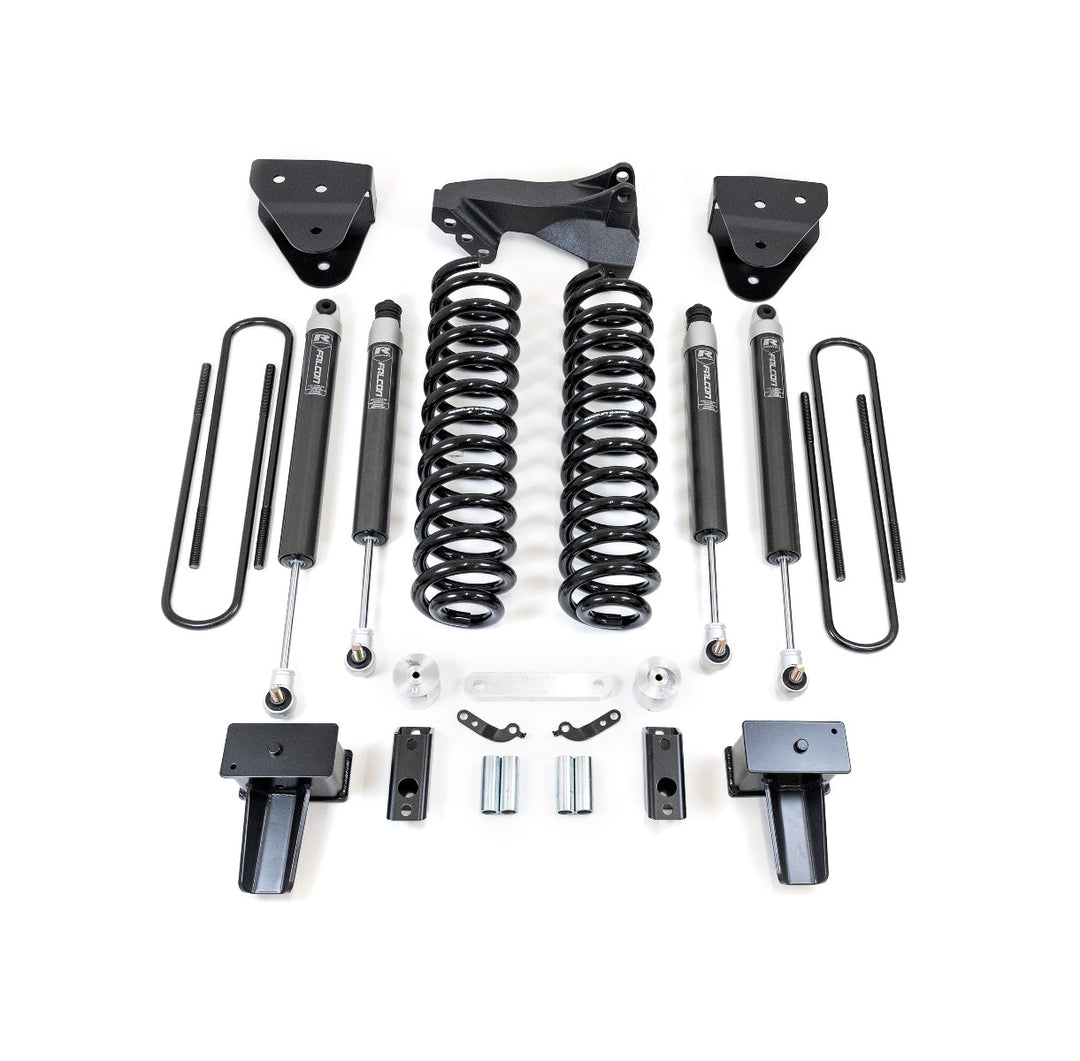

Kit components

4" Lift Springs

Falcon 1.1 Monotube Front and Rear Shocks

Track Bar Relocation Bracket

Radius Arm Drops

Sway Bar Drops

Bump Stop Extensions

Carrier Bearing Drop

Front Brake Line Brackets

Fabricated Rear Lift Blocks

Hardware Pack

Tire and wheel fitment

37x12.50 for no rub on a 9" wide wheel with 0 offset

18" - 37X12.5R18

20" - 37X12.5R20

22" - 325/60R22

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

Fitment

• Vehicle: 2017-2022 Ford F-250/F-350 Super Duty
• Model year(s): 2017, 2018, 2019, 2020, 2021, 2022
• Model(s): F-250, F-350
• Drivetrain: Four-wheel drive (4WD)
• Engine: Diesel
• Fits four-wheel-drive (4WD) models.
• Diesel models.

Safety and installation notes (from ReadyLift)

SAE J2492 Warning: By installing this product, you acknowledge that the suspension of this vehicle has been modified. As a result, this vehicle may handle differently than factory-equipped vehicles. As with any vehicle, extreme care must be used to prevent loss of control or rollover during sharp turns or abrupt maneuvers. Always wear seat belts, and drive safely, recognizing that reduced speeds and specialized driving techniques may be required. Failure to drive this vehicle safely may result in serious injury or death. Do not drive this vehicle unless you are familiar with its unique handling characteristics and are confident of your ability to maintain control under all driving conditions. Some modifications (and combinations of modifications) are not recommended and may not be permitted in your state. Consult your owner's manual, the instructions accompanying this product, and state laws before undertaking these modifications. You are responsible for the legality and safety of the vehicle you modify using these components.

Installation alignment note: Your vehicle may require alignment after product installation. You may incur additional costs to align the vehicle.

Installation headlamp aim note: In addition to your vehicle alignment, for your safety and others, it is necessary to check and adjust your vehicle headlamps for proper aim and alignment after product installation. You may incur additional costs to adjust the headlamp system.

Installation ADAS note: If your vehicle is equipped with active or passive safety/collision monitoring and/or assistance/avoidance systems including, but not limited to, camera- or radar/sonar-based systems, check and adjust your vehicle's systems for proper aim and function after product installation. In some instances, your vehicle may require OEM dealer service tools and factory-trained technicians to re-calibrate ADAS. You may incur additional costs to adjust ADAS systems.

Do it yourself: Please read instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/product

Installation

ReadyLift estimated installation time: 4.5 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly). TCcustoms installs ReadyLift kits at both our Bessemer and Pell City, Alabama shops. Contact us to schedule installation, or we can ship your kit anywhere in the country.

Fits: 2017-2022 F-250, 2017-2022 F-350

Every order gets a human fitment check before it ships. If something looks off for your truck, we call you first.
