This is a ReadyLift SST Lift Kit that allows for 2.5'' of lift. This kit is designed for 2017-2020 Ford Raptor. Part Number = 69-2755
2017-2020 Ford Raptor 2.5" SST Lift Kit
CNC machined 6061 T6 billet aluminum construction
Top hat coil over extensions with machined billet spring pre-load spacers
Includes 4 inch tall rear lift blocks
Includes control arm bump stops
ReadyLIFT is proud to offer an all-new billet Aluminum construction 2.5" SST Lift Kit developed exclusively for the all-new 2017-2020 Ford F-150 Raptor. This system provides a front-back lift solution for those who want a little more than what a leveling kit offers. For the newest Ford Raptor trucks, we deployed our renowned, indestructible billet coil-over spacer technology to optimize suspension articulation while retaining the factory travel specifications. The 69-2755 Raptor 2.5" SST Lift kit has been specifically engineered to bolt right onto the factory Internal Bypass Coil-overs. We also include a machined billet spring pre-load spacer that aids in generating the 2.5 inches of front lift without exceeding the manufacturer's maximum recommendation for droop and compression. The CNC machined billet construction adapts perfectly to the Raptor suspension and features a durable finish matching the factory coil-overs.
This kit also includes our Ford-specific OEM-style cast iron rear lift blocks that are 4 inches tall and replace the factory block. This kit also includes important control arm bump stops to limit over-droop while being aggressive in off-road environments.
These new Raptor systems are the epitome of ReadyLIFT quality, providing a quality factory ride, awesome stance and top-quality rugged construction worthy of this new high-performance pickup.
37-12.5 on the 66-2755 and 69-2755 kits with minor trimming.
Wheel offsets: +25 up to 0 on a 20 x 9 wheel.
The factory offset of this truck is a +34 on a 17 x 8.5" wide wheel.

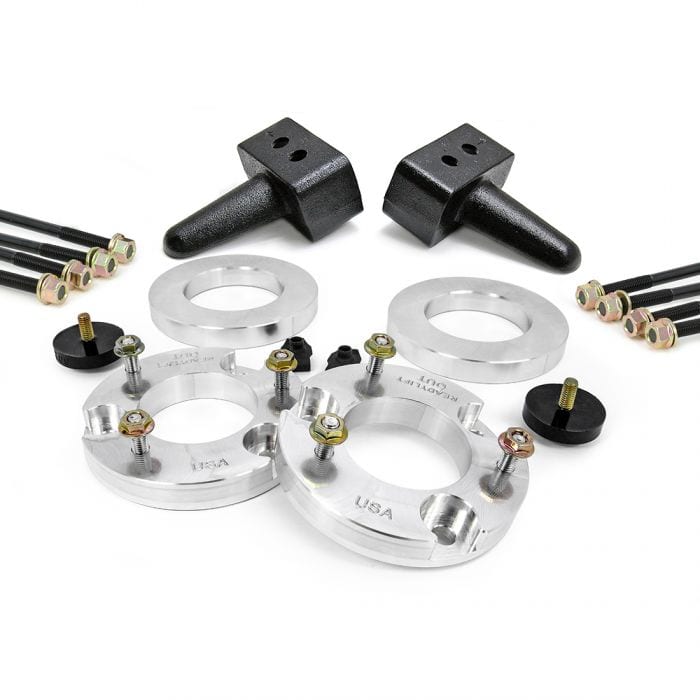

2- CNC machined 6061 billet aluminum top hat strut extensions
2- CNC machined billet aluminum spring preload spacers
2- OEM style cast iron 4 inch tall rear lift blocks
2- control arm bump stops with mounting clips
DO IT YOURSELF!
Please read Instructions thoroughly and completely before beginning installation. Installation by a certified mechanic is recommended. ReadyLIFT Suspension Inc. is NOT responsible for any damage or failure resulting from improper installation.Download Pdf Instructions
