ReadyLift - 2.5" LEVELING KIT - FORD RAPTOR 4WD 2017-2020
ReadyLift - 2.5" LEVELING KIT - FORD RAPTOR 4WD 2017-2020
ReadyLift - 2.5" LEVELING KIT - FORD RAPTOR 4WD 2017-2020
ReadyLift - 2.5" LEVELING KIT - FORD RAPTOR 4WD 2017-2020
ReadyLift

ReadyLift - 2.5" LEVELING KIT - FORD RAPTOR 4WD 2017-2020

Regular price $ 269.95 $ 0.00 Unit price per

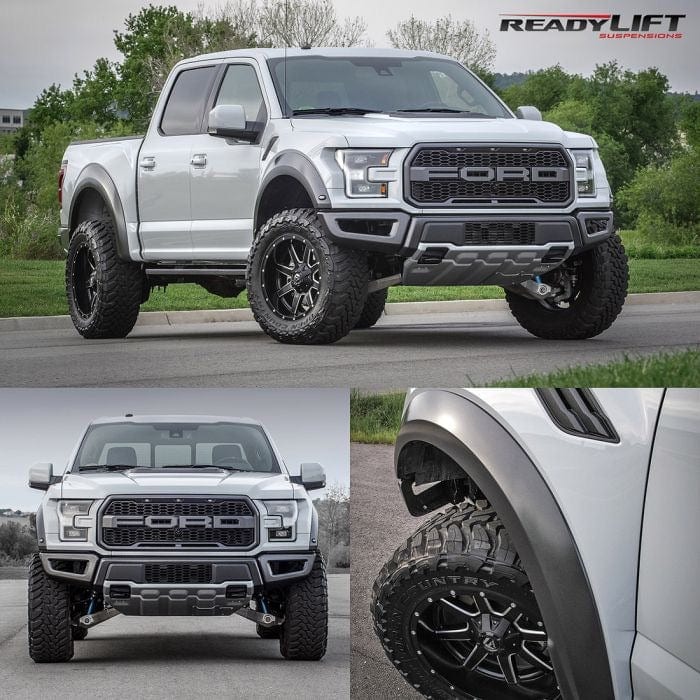

ReadyLIFT is proud to offer an all-new billet Aluminum construction 2.5" Leveling Kit developed exclusively for the 2017-2020 Ford F-150 Raptor. This kit gives you a little more front lift than our 1.5" leveling kit version. For the newest Ford Raptor trucks, we deployed our renowned, indestructible billet coil-over spacer technology to optimize suspension articulation while retaining the factory travel specifications. The 66-2755 Raptor leveling kit has been specifically engineered to bolt right onto the factory Internal Bypass Coil-overs. The CNC machined billet construction adapts perfectly to the Raptor suspension and features a durable finish matching the factory coil-overs.

66-2755 2.5" leveling kit is constructed of tough 6061-T6 billet Aluminum and attaches to the top of the factory Fox coil overs to provide a near-level stance but with a very minor rake. We also provide a machined billet spring preload spacer that provides just a little more lift while allowing the suspension to retain the factory maximum droop and compression lengths. This kit also includes important control arm bump stops to limit over-droop while being aggressive in off-road environments.

These new Raptor systems are the epitome of ReadyLIFT quality, providing a quality factory ride, awesome stance and top-quality rugged construction worthy of this new high-performance pickup.

Tire Fitment

37-12.5 on the 66-2755 and 69-2755 kits with minor trimming.

Wheel offsets: +25 up to 0 on a 20 x 9 wheel.

The factory offset of this truck is a +34 on a 17 x 8.5" wide wheel.

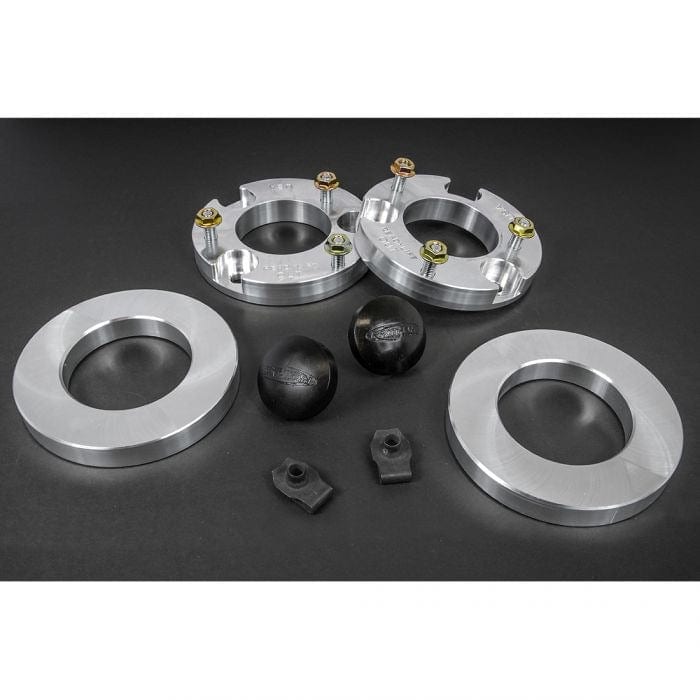

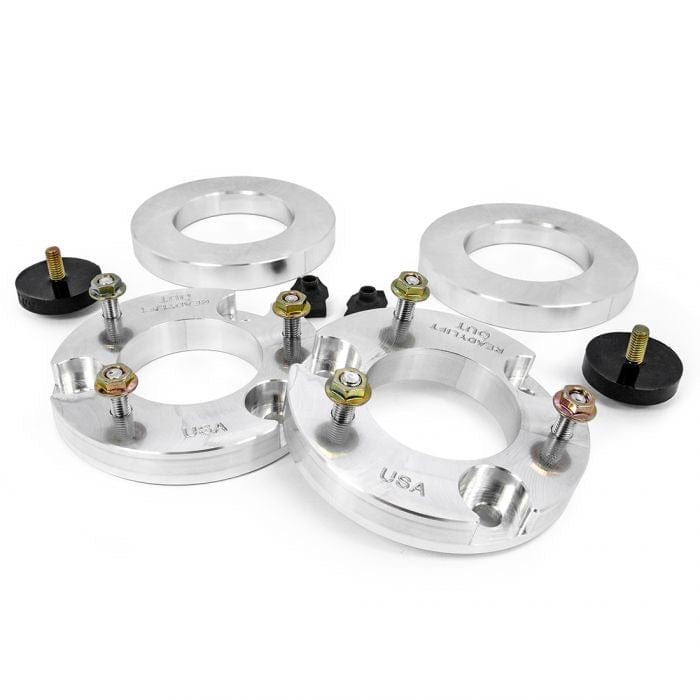

Kit Components

2 - CNC machined 6061 T6 billet aluminum construction top mount strut extensions

2 - CNC machined billet spring pre-load spacers

Includes control arm bump stops





Estimated Installation Time: 4 Hours +/- 0.5 hours (excluding alignment and wheel/tire assembly)
