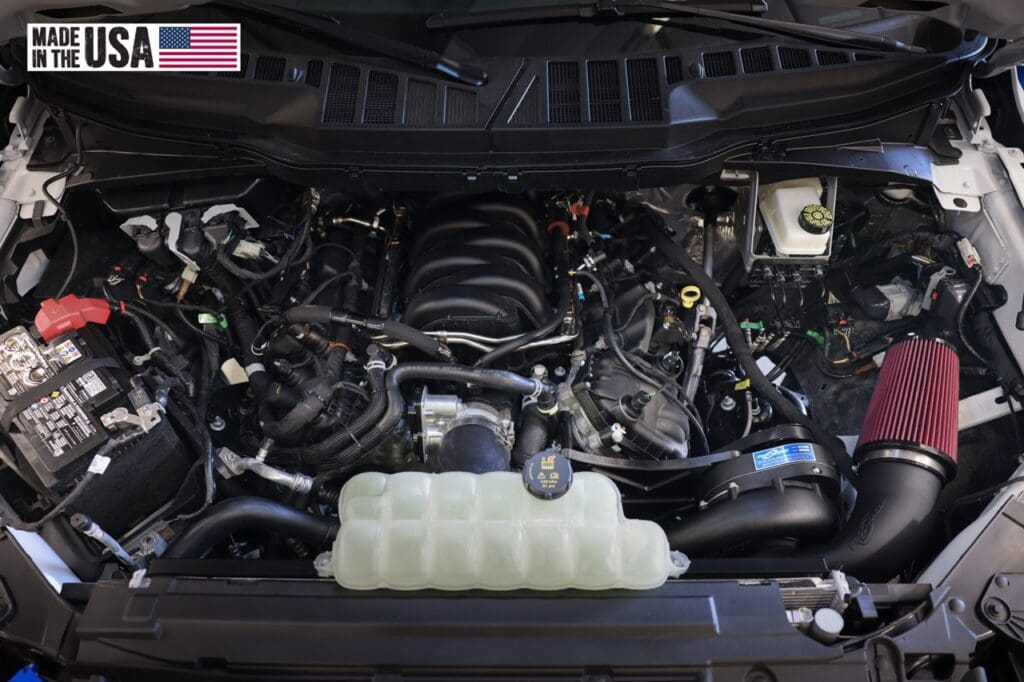

ProCharger 2021-2023 Ford F-150 5.0L V8 Stage 3 Intercooled Supercharger System

Bolt-On ProCharger Power, Backed by TCcustoms

Stage 3 is the serious build platform for the 2021-2023 F-150 5.0L. You get the same 75 to 80 percent power gain as Stage 2, plus a dedicated 8-rib belt drive and a 1600 plus HP rated air-to-air race intercooler, so the supporting hardware is already in place when you want to turn it up later.

Key Specs

• 75 to 80 percent or more horsepower gain on 91/93 octane (stock engine and exhaust)
• 11 to 12 psi of boost
• P-1X ProCharger head unit, satin finish standard
• Dedicated 8-rib belt drive system
• 1600 plus HP rated air-to-air race intercooler
• Complete system with ProCharger tuning included
• 100 percent reversible with no permanent modifications

What Is in the Box

• P-1X centrifugal supercharger (satin, black, or polished finish)
• Dedicated 8-rib drive system
• 1600 plus HP air-to-air race intercooler and tubing
• Fuel system upgrade components
• PCM tuning
• All hardware and instructions

Options and Upgrades

Use the option pickers above to choose your configuration. More upgrades are available when you order, just call us or add a note at checkout:

• Crank support for very high horsepower builds, add $675 in satin or $950 in black or polished
• Helical gear set for quieter operation, add $110
• Black bracket finish, add $225, or polished, add $325
• Black intercooler finish, add $195
• Typical install time runs 8 to 9 hours

Fitment

2021 Ford F-150 with the 5.0L V8 Coyote engine
2022 Ford F-150 with the 5.0L V8 Coyote engine
2023 Ford F-150 with the 5.0L V8 Coyote engine

California note: ProCharger does not currently list a CARB Executive Order for this application, so we cannot sell this system for street use in California. Call us if you are in an emissions regulated state and we will walk you through your options.

Complete ProCharger systems like this one are eligible for an optional powertrain warranty through ProCharger's partner, Pinnacle Protect. Ask us for current terms when you order.

Common Questions

What does Stage 3 add over Stage 2?

A dedicated 8-rib belt drive and the 1600 plus HP race intercooler. It is the right starting point if you plan to push past pump gas power levels down the road.

Does this kit include tuning?

Yes. Stage 3 is a complete system, and ProCharger tuning is included.

Can TCcustoms install it?

Yes. We install ProCharger systems at our Bessemer and Pell City shops. Plan on 8 to 9 hours of install time for this one.

Why Buy From TCcustoms

TCcustoms is a ProCharger dealer with full installation shops at both of our Alabama locations, Bessemer and Pell City. We install what we sell, we ship nationwide, and customers drive and ship vehicles to us from all over the country for supercharger installs and custom builds. Call us before you order and a real builder will help you spec the right setup the first time.

Prices shown are ProCharger MSRP. Part number 1EA511 series, made in the USA by ProCharger in Lenexa, Kansas.

Fits: 2021-2023 F-150

Every order gets a human fitment check before it ships. If something looks off for your truck, we call you first.
