Mishimoto Baffled Oil Catch Can PCV Side - 2015-2017 Ford Mustang GT 5.0L

This is the Mishimoto Baffled Oil Catch Can, PCV Side (part number MMBCC-MUS8-15PBE), a billet 6061-aluminum catch can for the 2015-2017 Ford Mustang GT (5.0L Coyote). Made by Mishimoto.

Overview

As powerful as the Ford Coyote engine is, it still needs some protection, and the Mishimoto engineers created a baffled catch can kit for that very reason. Engine blow-by can cause an oily mess inside intake manifolds and decrease octane levels, potentially increasing chances of detonation. Mishimoto's 2015-2017 Mustang catch can kit features a patent pending 2-port Compact Baffled Oil Catch Can with a 50-micron bronze filter and an internal baffle to better separate oil from the crankcase vapors. Two direct-fit hoses and an application-specific bracket make for a quick and simple installation. Reducing blow-by becomes even more important with the addition of forced induction, so this 2015-2017 Mustang catch can kit mounts away from most intake and supercharger kits to make room for some more horses. When you're on the road with that 5.0L Coyote, you'll have the peace of mind knowing that blow-by isn't stripping away any of your treasured HP. To back up Mishimoto's superior craftsmanship, each 2015-2017 Mustang catch can kit comes with the renowned Mishimoto Lifetime Warranty! Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently.

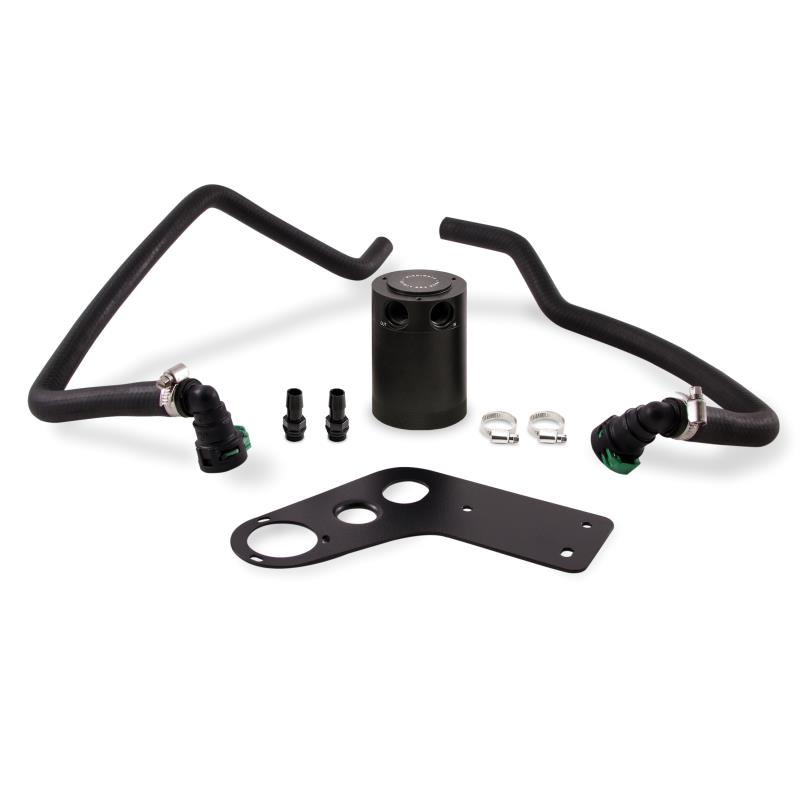

What's included

• (1) Compact Baffled Oil Catch Can
• (1) Application-Specific Mounting Bracket
• (2) Direct-Fit Hoses with Pre-Installed Factory Quick-Disconnect Fittings
• (2) 1/2-in Aluminum Barbed Fittings
• (2) Worm Gear Clamps
• Mounting Hardware
• Mishimoto Lifetime Warranty

Fitment details

Applications: 2015-2017 Ford Mustang GT. Engine Codes: 5.0 Coyote. Chassis Codes: S550. Installation Notes: 22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in- 2-3NM. Do not exceed the maximum torque rating of 27 in-lbs (3NM). Note: After installation, Mishimoto recommends checking the contents of the baffled catch cans every 1,000 miles until a baseline is established. It is important that the contents of the can do not rise above the internal baffle. May not be direct fit with some S/C applications.

Fitment

• Vehicle: Ford Mustang GT (S550)
• Years: 2015-2017
• Engine: 5.0L V8 (Coyote)

Installation

TCcustoms installs this at both our Bessemer and Pell City, Alabama shops. Contact us to schedule installation, or we can ship your part anywhere in the country.

Fits: 2015-2017 Mustang

Every order gets a human fitment check before it ships. If something looks off for your truck, we call you first.
