KC HiLiTES Gravity Titan 50" Overhead LED Light Bar - 2017-2026 Ford F-150 Raptor

The KC HiLiTES Gravity Titan 50" Overhead LED Light Bar system (part number AK-91428) is a complete overhead light bar bundle with vehicle-specific brackets that fits 2017-2026 Ford F-150 Raptor. Made by KC HiLiTES.

Overview

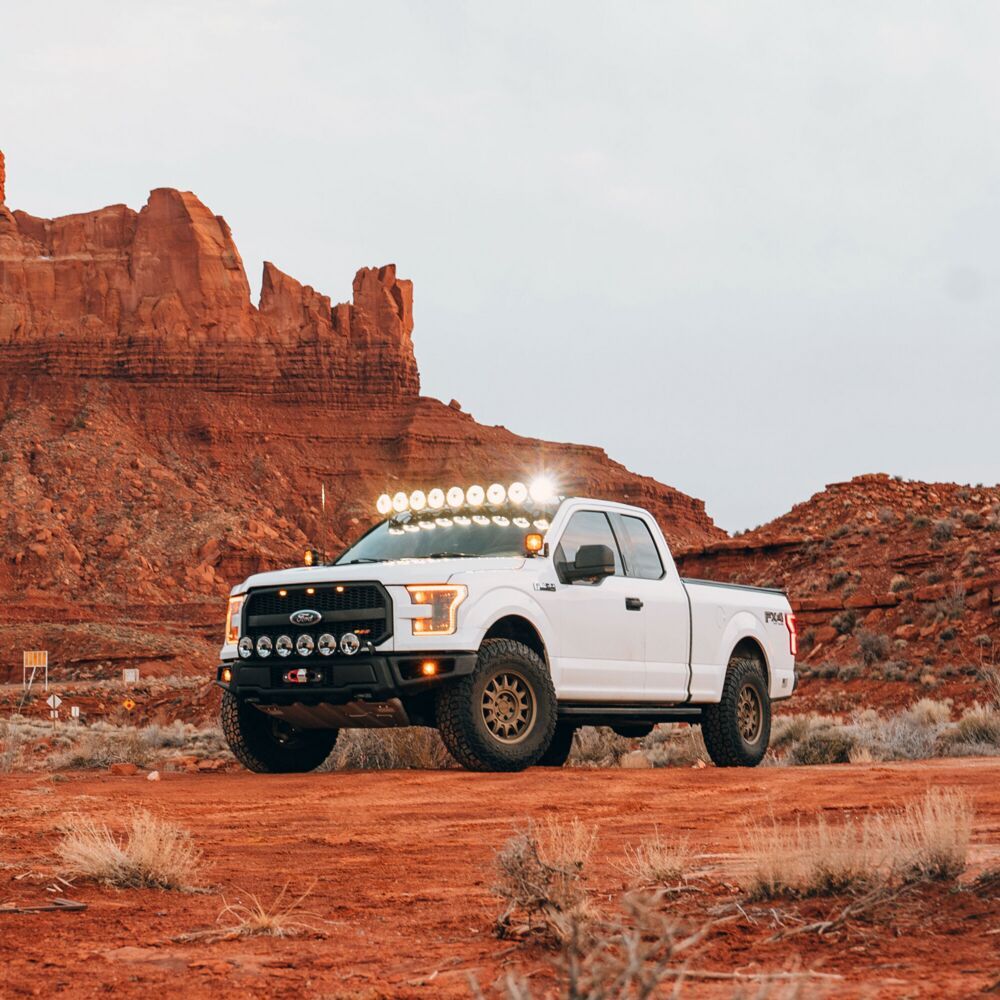

A complete overhead lighting solution designed specifically for the 2015-2026 Ford F-150 and Ford Raptor. This Gravity Titan light bar system delivers powerful forward-facing illumination using vehicle-specific brackets for enhanced trail visibility during off-road use. Designed to mount above the windshield, this setup provides long-distance lighting with a precise fit for full-size Ford trucks.

At the center of the system is the Gravity Titan LED Light Bar, KC's most advanced lighting platform. Powered by the Titan Core and 3-Source LED optics, Titan produces a larger illumination zone, increased peak intensity, and greater beam distance than previous Gravity platforms. Dual Power Modes allow you to switch between full High Power Mode for nighttime driving and an integrated Amber Dust Light that acts as a highly visible marker in dusty, snowy, or low-visibility conditions.

The system is completed with Ford F-150 and Raptor overhead mounting brackets built from heavy-duty steel and finished in a black powder coat. Designed to bolt directly to factory mounting locations, these brackets provide a secure and durable mounting solution engineered to withstand the demands of off-road use.

Features

• Dual Power Modes: Amber LED Dust Light (highly visible marker for low-visibility conditions); High-Power Mode (intense forward-facing illumination for nighttime trail use)
• Titan Core: Patented Pass-Through Front Cooling (superior thermal management); 3-Source LED Optics (delivers comprehensive mid- and long-range lighting coverage)
• Linkable and Curvable: Patented Infinity Ring system offers expandable widths and the option to curve or straighten your setup
• Gravity Reflective Diode Technology: Ensures unmatched beam precision and efficiency, providing brighter and more focused light
• MoistureBlock Technology: Integrated weather-sealed plug protects against water intrusion

What's included

• (1) Gravity Titan 50" LED Light Bar - 9-Light Combo Beam (SKU 91419)
• (8) Gravity 6" Light Covers - Black with Yellow KC Logo
• (1) Complete Wiring Kit with 3-Position Switch
• (1) Cover Removal Tool
• (1) Pair of Ford F-150 / Raptor overhead mounting brackets (SKU 7379)

Fitment details

Fitment & Installation Notes

• Vehicle Fitment: Ford F-150 (2015-2026); Ford Raptor (2017-2026)
• Mounting Location: Overhead / windshield
• Installation: Drill-required installation; professional installation recommended

Specs

• Product Dimensions: W: 51.58 in x H: 6.05 in x D: 3.27 in
• Beam Distance: 1,010 m
• Beam Pattern: Combo
• LED Color: Amber / White
• Light Temp: 5000 K
• Total Candela: 1,020,500 cd
• Total Wattage: 89.6W (Amber) / 315.84W (White)
• Total Amp Draw: 7.47 a (Amber) / 26.32 a (White)
• Voltage: 9V-36V
• Total Lumens: 23,776 lm
• UPC: 084709200053
• IP Rating: IP68

Fitment

• Vehicle: Ford F-150 Raptor
• Years: 2017-2026
• Generation: Gen 2 and Gen 3

Disclosures

This product can expose you to chemicals including lead and lead compounds, DEHP and bisphenol A (BPA) which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

Installation

TCcustoms installs this at both our Bessemer and Pell City, Alabama shops. Contact us to schedule installation, or we can ship your part anywhere in the country.

Fits: 2017-2026 F-150 Raptor

Every order gets a human fitment check before it ships. If something looks off for your truck, we call you first.
