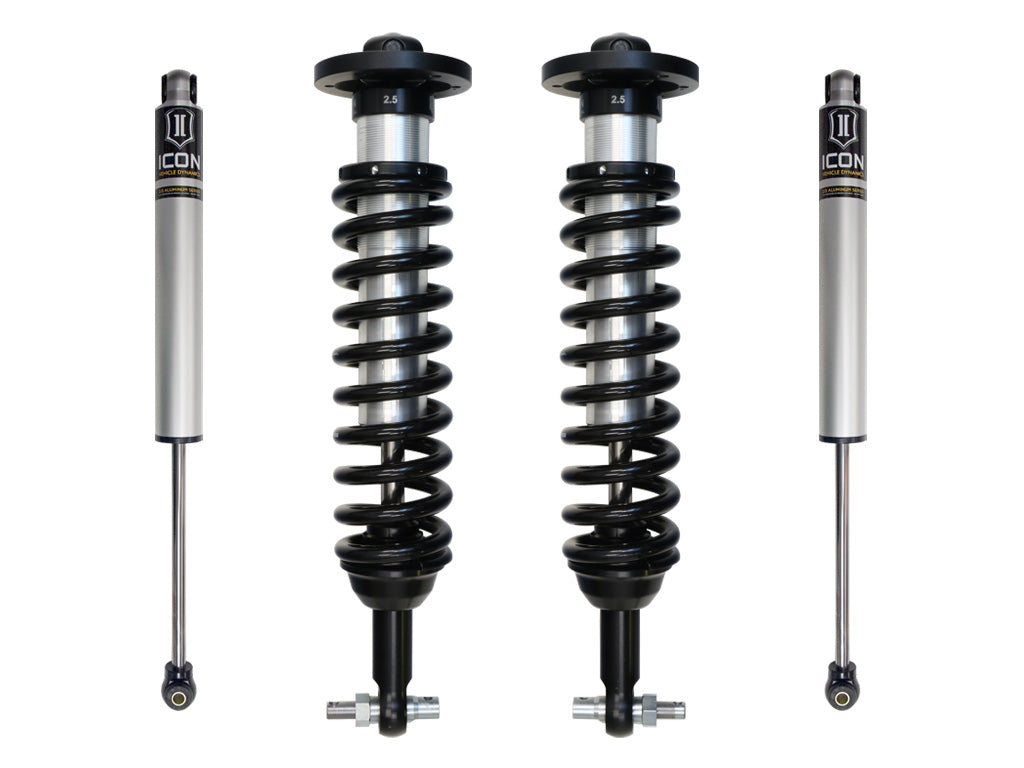

ICON Vehicle Dynamics 0-3" Lift Stage 1 Suspension System (2WD) - 2021-2023 Ford F-150

The ICON 0-3" Lift Stage 1 suspension system (part number K93121) fits 2021-2023 Ford F-150. Made by ICON Vehicle Dynamics.

Overview

ICON Vehicle Dynamics 2021-2023 Ford F150 2WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5" coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle "feel" through the range of travel. These coilovers are also height adjustable from 0-3" allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-2023 F150 2WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

• Increased wheel travel and ride quality over stock with no change in towing capacity
• 100% bolt-on system - no drilling, cutting, or welding necessary for install
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers provide 0-3" of lift height over stock
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• High strength alloy CNC machined lower bar pins
• FK Rod End bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series rear shocks with 5/8" induction hardened shafts

What's included

• 91717 (qty: 1) | 21-23 F150 2WD 0-3" 2.5 VS IR COILOVER KIT
• 96518 (qty: 2) | 09-24 F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR

Fitment details

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• APPLICATION NOTE #7: Only fits rear-wheel drive (2WD) models
• APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
• APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
• APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs. Not compatible with ICON Delta Joint Pro UCAs.
• TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.75" over stock
• TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.5" over stock
• TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models

Fitment

• Vehicle: Ford F-150
• Years: 2021-2023
• Generation: 14th generation (2021-2026)

Disclosures

CA Residents: Prop 65 Warning

WARNING: This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.

Installation

TCcustoms installs this at both our Bessemer and Pell City, Alabama shops. Contact us to schedule installation, or we can ship your part anywhere in the country.

Fits: 2021-2023 F-150

Every order gets a human fitment check before it ships. If something looks off for your truck, we call you first.
