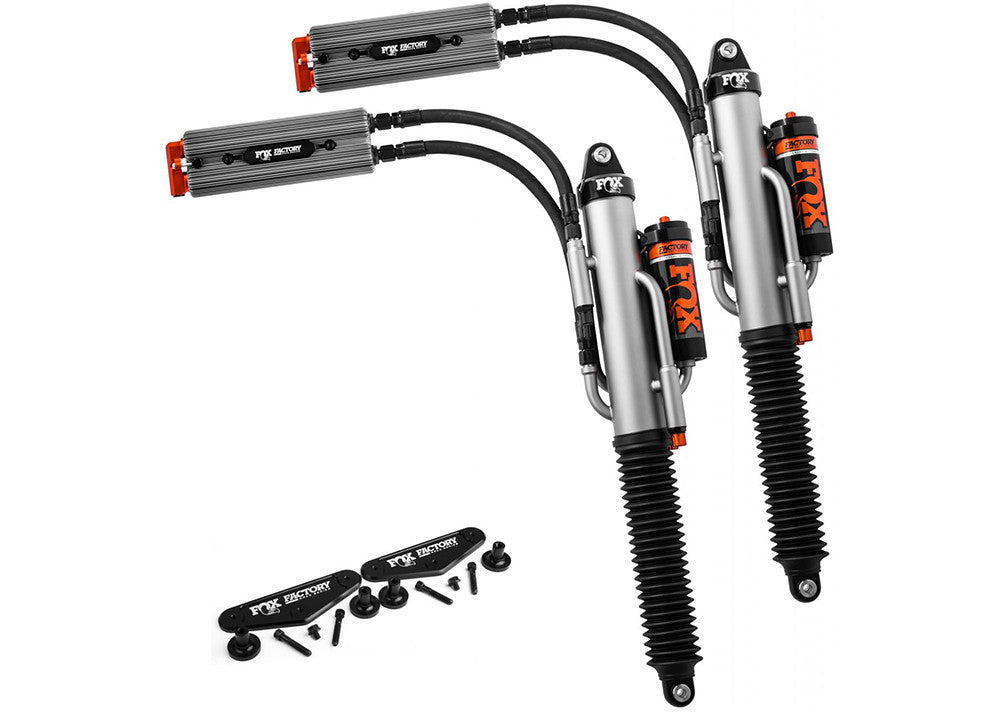

FOX Factory Race Series 3.0 External Bypass QAB Rear Shocks - 2017-2020 Ford F-150 Raptor
SKU 883-09-141
or about $ 323.32/mo with Shop Pay Installments, subject to eligibility check at checkout
In stock. Ships free
Will it fit your truck?
Fits: 2017-2020 F-150 Raptor · Not sure? Call (205) 491-0010 or ask a fitment question. We check it by VIN for free.
Details
The FOX Factory Race Series 3.0 External Bypass QAB rear shocks (part number 883-09-141) are a rear shock pair that fits 2017-2020 Ford F-150 Raptor. Made by FOX.
Overview
Taking inspiration from off-road racing, the Factory Race Series rear upgrade kit for the Gen 2 Raptor utilizes the same technology and parts found on the top race-winning off-road machines, including External Bypass position-sensitive damping, Quick Adjust Bypass (QAB), and an External Cooling System (ECS2).
This kit delivers the next level of off-road performance without sacrificing every day ride quality.
Features
- Performance Tuned For Vehicle Specific Application
- Durable Zinc Plated Seamless Alloy Body
- Quick Adjust Bypass Knobs For Easy Adjustments
- External Reservoir System Dissipates Heat Fast
Fitment details
Tech Specs
- Shock Type: External Bypass
- Product Series: Factory Race
- Reservoir Type: Piggyback
- Travel: 12.27 in.
- Compressed Length: 18.88 in.
- Extended Length: 31.15 in.
- Diameter: 2.5 in.
- Body: 3.0" steel body new, proprietary coating for improved durability
- Reservoir: NEW, hard anodized impact extruded aluminum finned remote reservoir with NEW Recirculating Reservoir Bridge
- Components: Hard anodized, CNC-machined 6061-T6 billet aluminum
- Shaft: 7/8" 17-4 H900 hard chrome plated stainless steel
- Piston: Hard anodized 6061-T6 billet aluminum high flow race piston
- Valving: Specific for Gen 2 Raptor to maximize performance and comfort
- Bearing Spherical, PFTE-lined, heat-treated steel
- Adjustments: Quick Adjust Bypass (QAB) adjusters
- Adjuster Type: QAB - Quick Adjust Bypass
- Top Mount: Eyelet
- Bottom Mount: Eyelet
Fitment
- Vehicle: Ford F-150 Raptor
- Years: 2017-2020
- Generation: Gen 2
Disclosures
California Residents: Prop 65 WARNING: Products sold on this website MAY contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For more information, visit www.P65Warnings.ca.gov
Installation
TCcustoms installs this at both our Bessemer and Pell City, Alabama shops. Contact us to schedule installation, or we can ship your part anywhere in the country.
Fitment
Fits: 2017-2020 F-150 Raptor
Every order gets a human fitment check before it ships. If something looks off for your truck, we call you first.
