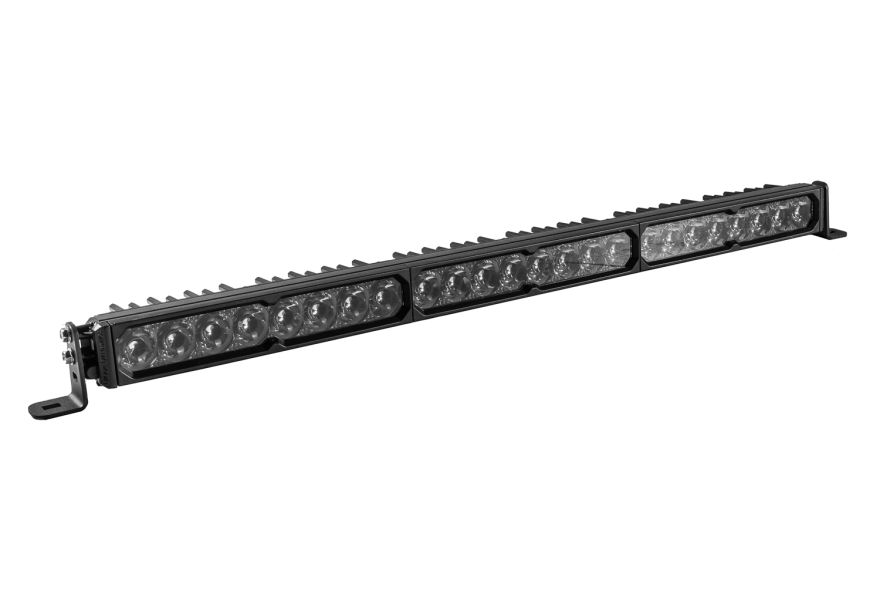

Diode Dynamics SS30 Stage Series 30" LED Light Bar - 2017-2026 Ford F-150 Raptor

The Diode Dynamics SS30 Stage Series 30" LED Light Bar (SKU DD8255, SS30 Sport White Combo) is a universal-fit LED light bar, listed here for 2017-2026 Ford F-150 Raptor. Made by Diode Dynamics.

Overview

See Further and Go Faster with all-new SS30 LED Light Bar! With higher light output, modern optics, and greater intensity than anything else on the market - plus advanced control and unmatched configurability - the new Stage Series Lightbars are the most capable lightbars available today.

Designed for Performance. Each Stage Series Light Bar has been engineered from the ground up with the most modern optical, thermal, and circuit board technologies to provide more output than any other light bar on the market. Unlike reflectors, TIR optics capture and focus nearly all of the light output, shining it only where you need it, without glare or wasted light.

Built for Every Application. Each beam pattern has been fine-tuned for real-world conditions to perform even better than before. The all-new Combo/Driving pattern has been engineered to blend distance and width into one balanced beam pattern. Our new Combo/Driving optic uses dozens of carefully-designed pillow optics to produce a blended, even output that measures 60x30 degrees and gives you throw downrange while still providing ample foreground illumination.

Features

• Patented TIR Optics for maximum efficiency and output.
• Upgraded beam patterns engineered for real-world performance.
• Modern welcome sequence and selectable backlight color with SmartSelect technology.
• Now available in Sport and Pro power levels.
• Durable aluminum housing with ASTM-standard powdercoat finish.
• Built for the extreme with IP69K waterproof rating.
• Limited Lifetime Warranty.
• Made in USA with Global Materials.

What's included

• One (1) LED light bar
• One (1) wire pigtail
• Universal bracket set

Fitment details

With the included universal bracket set, this product can be installed on any make or model.

Specs (SS30 Sport White Combo, DD8255)

• Raw output: 11,064 lumens (Sport)
• Peak beam intensity: 120,000 cd (Combo Sport); 1,200 lux @ 10m
• Color temperature: 6000K White
• Beam angle (Combo/Driving): 60 x 30 degrees
• Power: 120 watts (Sport)
• Current draw: 9.38 amps @ 12.8V (Sport)
• Operating voltage: 9-30V
• Connector: Deutsch DT; ships with one wire pigtail
• Dimensions: 2.01 x 31.63 x 2.46 in; weight 8.8 lbs
• Waterproofing: IP69K

Fitment

• Vehicle: Ford F-150 Raptor (universal-fit product)
• Years: 2017-2026
• Generation: Gen 2 and Gen 3

Installation

TCcustoms installs this at both our Bessemer and Pell City, Alabama shops. Contact us to schedule installation, or we can ship your part anywhere in the country.

Fits: 2017-2026 F-150 Raptor

Every order gets a human fitment check before it ships. If something looks off for your truck, we call you first.
