Diode Dynamics SS3 LED Fog Light Kit - 2017-2020 Ford F-150 Raptor

The Diode Dynamics SS3 LED Fog Light Kit is a six-pod fog and off-road lighting kit (two SAE Fog plus four Combo/Driving SS3 pods) that fits 2017-2020 Ford F-150 Raptor. Configure your color, output, and part number on the product page. Made by Diode Dynamics.

Overview

Features

• Bolt-on fitment for the 2017+ Ford Raptor.
• Adds SAE-compliant fog lights, and powerful offroad lighting.
• Harnesses included for independent control of road-legal and offroad lighting.
• Backlight feature provides amber accent light.
• Highly durable powdercoated aluminum construction.
• Engineered and assembled in USA.

Overview. If you are looking to add some serious functionality to your Raptor, look no further! The SS3 Fog Light Kit for the 2017+ Ford Raptor from Diode Dynamics adds both road-legal fog lights and powerful offroad lighting. The CAD-designed brackets allow you to mount six SS3 LED Pods factory bumper openings. With the included harnesses, you'll be able to switch between road-legal fog lights and offroad lights with ease using your factory aux switch bank.

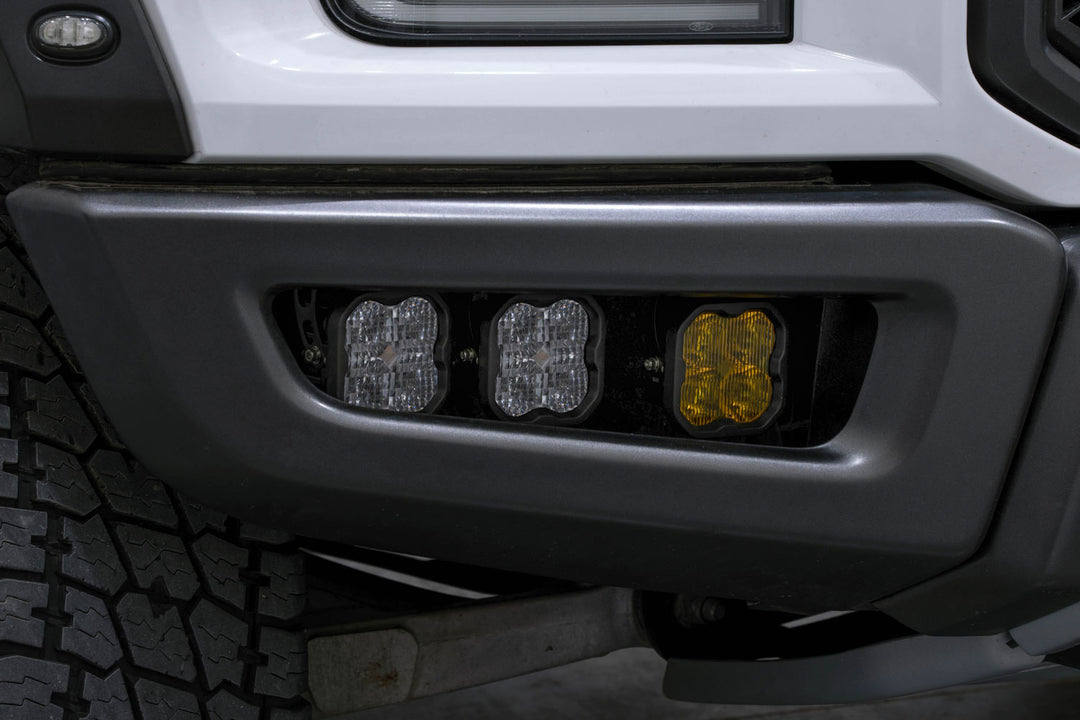

Lighting for Every Situation. This kit includes six total SS3 LED Pods: two SAE Fog, and four Combo/Driving. This combination provides ideal light output whether you are on or offroad!

SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It will fully illuminate the area in front of your truck.

Combo/Driving provides a balanced beam pattern with strong forward illumination and a wide field of view. It shines in a smooth 80x30 degree spread, making it an excellent all-around option for a variety of speeds and terrain. Unlike other combo lights on the market that produce a distracting hotspot on rough terrain, the Combo/Driving optic produces a smooth, evenly blended pattern for a more comfortable driving experience.

When installed as a pair and aimed in accordance with your state's regulations, the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

Backlight Functionality. Each pod in this kit includes a distinctive Amber backlight feature that can be controlled separately using the factory aux switches. The backlight on each pod included with the kit fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

White or Yellow Fog. The SS3 Fog pods included with this kit are available in both cool white and selective yellow LED pod options. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. The SS3 offroad pods in both options are 6000K cool white.

Sport, Pro, or Max. This kit is available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs, and is the best bang for the buck you'll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model features our SS3 Max LED pods, which have been designed with cutting-edge automotive emitters for both high power and extreme intensity. This brand new technology comes at a cost, but if you're looking for the absolute best in lighting performance, the SS3 Max is the answer. Click the Specifications tab to see more information or click here.

Separate Switches. With the included harnesses, the two SS3 Fog pods and four SS3 offroad pods in this kit can be controlled independently, allowing you to switch between road-legal fog lights and offroad lights with ease. This kit was designed to allow the SS3 Fog pods to operate in the same way factory-installed fog lights do, automatically turning on when they are switched on and when your headlights are turned on. The off-road lights in this kit can be controlled either through factory aux switches or the included 3-way toggle switch.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

What's included

Included in the box: Two (2) White SAE Fog SS3 LED Pods. Four (4) White Combo SS3 LED Pods. One (1) dual-output fog harness. One (1) Heavy Duty Dual Output 4-pin harness. Two (2) 3-way backlight splitters. Four (4) zip ties. Mounting hardware and guide.

Fitment details

Bolt-on fitment for the 2017+ Ford Raptor.
Make: Ford
Model: Raptor
Years: 2017, 2018, 2019, 2020

Fitment

• Vehicle: Ford F-150 Raptor
• Years: 2017-2020
• Generation: Gen 2 (2017-2020)

Installation

TCcustoms installs this at both our Bessemer and Pell City, Alabama shops. Contact us to schedule installation, or we can ship your part anywhere in the country.

Fits: 2017-2020 F-150 Raptor

Every order gets a human fitment check before it ships. If something looks off for your truck, we call you first.
