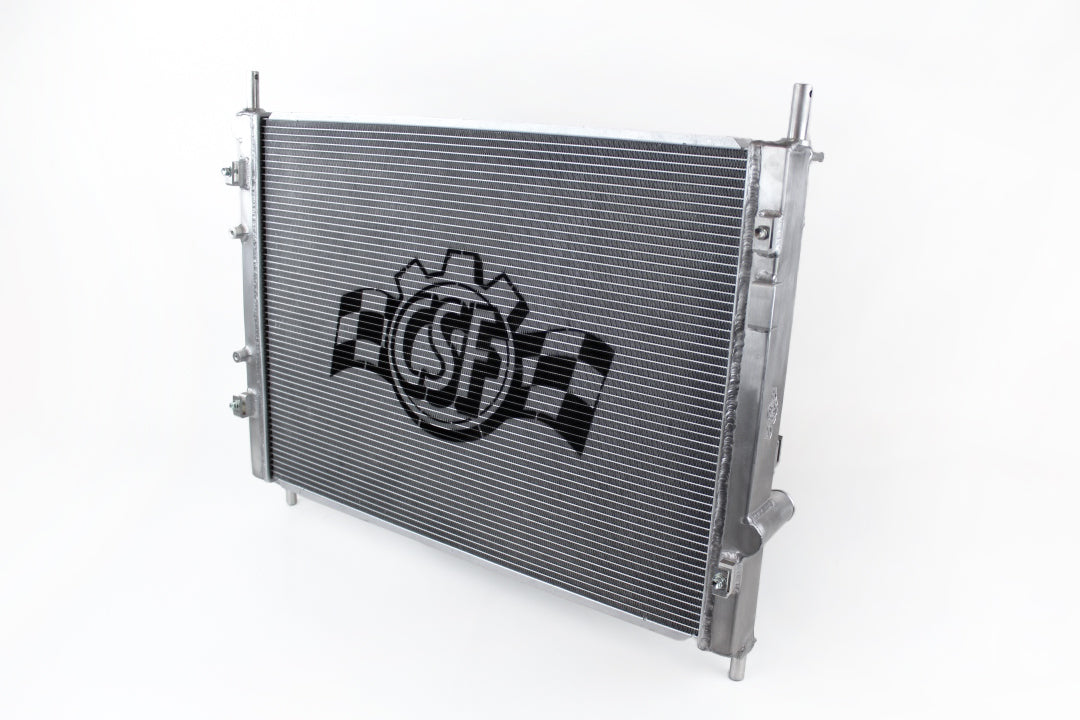

CSF Triple-Pass All-Aluminum Radiator - 2015-2023 Ford Mustang GT 5.0L

This is the CSF #7073 High-Performance All-Aluminum Radiator, a triple-pass 2-row 42mm radiator for the 2015-2023 Ford Mustang GT (5.0L). It also fits the Bullitt, Shelby GT350 (5.2L) and V6 (3.7L). Made by CSF.

Overview

CSF has over 5 decades of experience manufacturing radiators. So when it comes to keeping your engine cool and your Mustang running at its best, a CSF High-Performance All-Aluminum Radiator is the obvious choice. Designed to perform on the street or at the track, a performance radiator is a must-have for both high horsepower builds as well as race vehicles which need added cooling performance in motorsports environments. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. The CSF Mustang radiator is a true "Drop-in fit" design requiring no modifications to install. OE style brackets are all CNC machined and welded for the best durability possible. Inlet/Outlet connections are designed to match the OE connections so you can reuse OEM hoses or aftermarket.

What's included

• 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology
• Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined "Quick-Connect" Inlet/Outlet Connections
• CNC Machined Brackets and Fittings for Superb Fit and Durability
• All-Aluminum Race Style Drain Plug
• Smooth Satin Finish
• "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud

Fitment details

Applications (per CSF): 2019-2020 Ford Mustang Bullitt (S550, 5L V8); 2015-2021 Ford Mustang GT (S550, 5L V8); 2015-2020 Ford Mustang Shelby GT350 (S550, 5.2L V8); 2015-2017 Ford Mustang V6 (S550, 3.7L V6). OEM Part Numbers: Ford FR3Z 8005 F, Ford FR3Z 8005 G. Warranty Term: 2 years.

Fitment

• Vehicle: Ford Mustang GT (also Bullitt, GT350, V6) - S550
• Years: 2015-2023
• Engine: 5.0L V8 (GT); 5.2L V8 (GT350); 3.7L V6

Disclosures

Cooling Systems and Flexibles, Inc. (CSF) warrants CSF's High-Performance Cooling Systems, under normal use and service, to the original purchaser of the vehicle in which the product was originally installed. SKU# 7073, Warranty Term: 2 years.

Installation

TCcustoms installs this at both our Bessemer and Pell City, Alabama shops. Contact us to schedule installation, or we can ship your part anywhere in the country.

Fits: 2015-2023 Mustang
