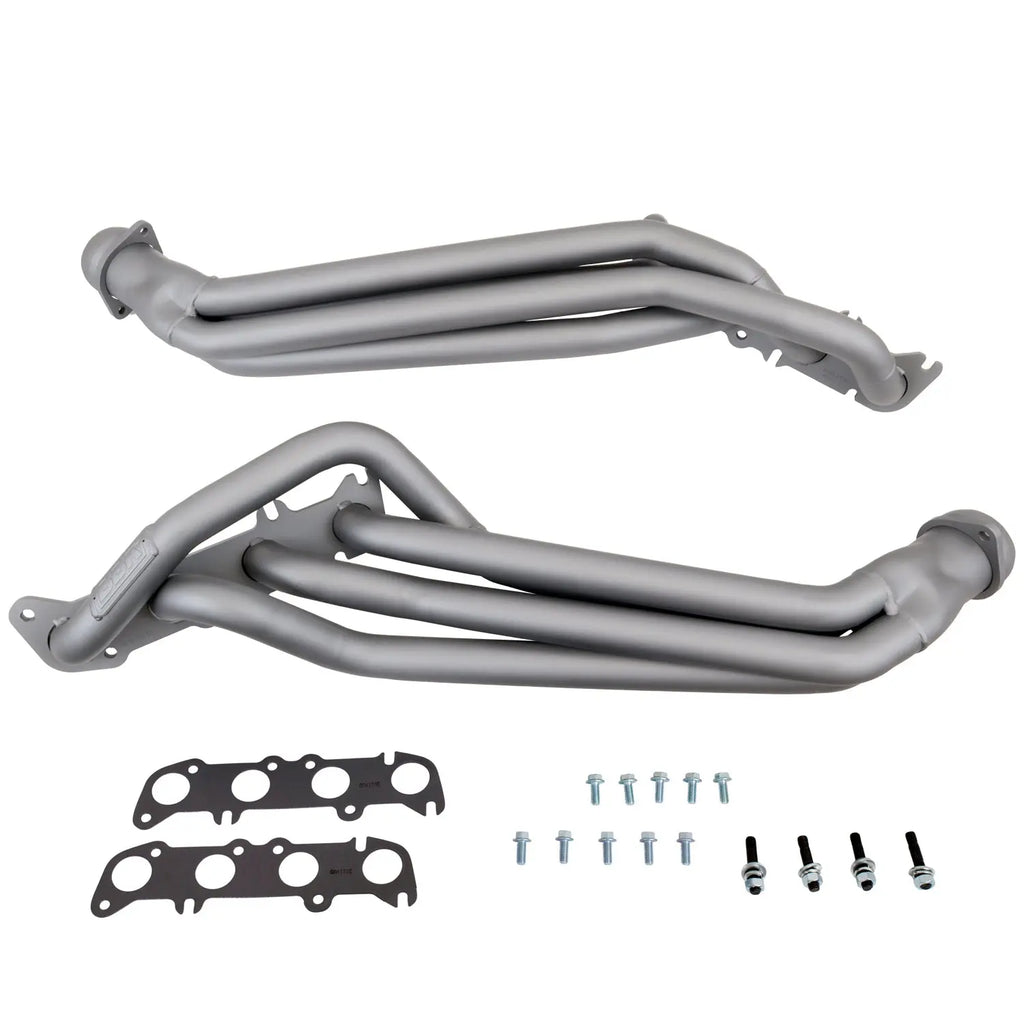

BBK Titanium Ceramic 1-3/4-Inch Long-Tube Headers - 2011-2023 Ford Mustang GT 5.0

The BBK 1633 is a set of 1-3/4" titanium ceramic-coated full-length (long-tube) exhaust headers for the 2011-2023 Ford Mustang GT and Boss 302 5.0L (S197 chassis 2011-2014 and S550 chassis 2015-2023). Made by BBK Performance.

Overview

• 30+ Horsepower Increase is Typical
• Large 1-3/4" CNC Mandrel Bent Primaries for Maximum Flow
• Leak Free Ball & Socket Collector
• 16 Gauge Steel Tubing with 3/8" Thick Exhaust Header Flanges to prevent heat distortion
• Must use with BBK Mid Pipe to complete installation
• Gaskets and Hardware Included
• Titanium Ceramic Finish
• Fits with Manual & Automatic Transmissions

Increased Exhaust Flow for More Horsepower. Significantly increase the horsepower output from your 2011-2023 Ford Mustang GT or Boss 302 with these BBK Performance full length headers. BBK full length headers will increase your exhaust flow giving you additional horsepower and torque across the RPM range. These BBK full length headers will help give your Coyote powered Mustang an awesome throaty exhaust sound that is bound to turn heads.

Designed to Perform. BBK Performance full length headers are built and constructed with 1-3/4" CNC-machined mandrel bent tubing with 3/8" thick die-stamped header flanges. The full length primary tube design creates unrestricted exhaust flow for ultimate horsepower and torque gains. All BBK exhaust headers are pressure tested to ensure leak free performance.

Bolt-On Installation. These performance headers are designed as a direct bolt on when used with a BBK Performance short mid pipe. All Kits include new gaskets and hardware.

What's included

• Gaskets and Hardware Included
• Header Bolts: 10pcs - M10x1.5 x 25mm (Early 2011 Coyote Gen 1)
• Header Bolts: 10pcs - M10x1.25 x 25mm (Later Model Gen II & Gen III Engines)

Fitment details

VEHICLE FITMENT: 2015-2023 Mustang GT / Boss 302 (BBK page also states these fit your 2011-2023 Ford Mustang GT or Boss 302).

Please Note: These BBK Long Tube Headers require the use of Front O2 wire harness extensions - these are not included and are recommended for installation. Please check the GEN Coyote engine that you have and order the correct harness: GEN1 Coyote (11-14) requires Part #1112 or Part #16332; GEN2 Coyote (15-17) requires Part #1119; GEN3 Coyote (18-23) requires Part #1121.

You MUST Check for the correct thread pitch before installation. Failure to check thread pitch will result in a damaged cylinder head.

Fitment

• Vehicle: Ford Mustang
• Years: 2011-2023
• Engine: GT / Boss 302 5.0L (Coyote)
• Chassis: S197 (2011-2014), S550 (2015-2023)

Disclosures

This part is NOT C.A.R.B Approved and cannot be installed for use on any emission controlled vehicle in California. It cannot be sold or shipped to any California resident or addressee.

Proposition 65 Warning (see oehha.ca.gov/proposition-65).

Installation

TCcustoms installs this at both our Bessemer and Pell City, Alabama shops. Contact us to schedule installation, or we can ship your part anywhere in the country.

Fits: 2015-2023 Mustang

Every order gets a human fitment check before it ships. If something looks off for your truck, we call you first.
