TWIN MOTOR ONBOARD 12V AIR COMPRESSOR CKMTA12
TWIN MOTOR ONBOARD 12V AIR COMPRESSOR CKMTA12
TWIN MOTOR ONBOARD 12V AIR COMPRESSOR CKMTA12
TWIN MOTOR ONBOARD 12V AIR COMPRESSOR CKMTA12
TWIN MOTOR ONBOARD 12V AIR COMPRESSOR CKMTA12
TWIN MOTOR ONBOARD 12V AIR COMPRESSOR CKMTA12

TWIN MOTOR ONBOARD 12V AIR COMPRESSOR CKMTA12

CKMTA12

ARB Usa/Old Man Emu
$ 659.95
/
  • In stock, ready to ship
  • Backordered, shipping soon
  • Orders Over $750 Ship Free!

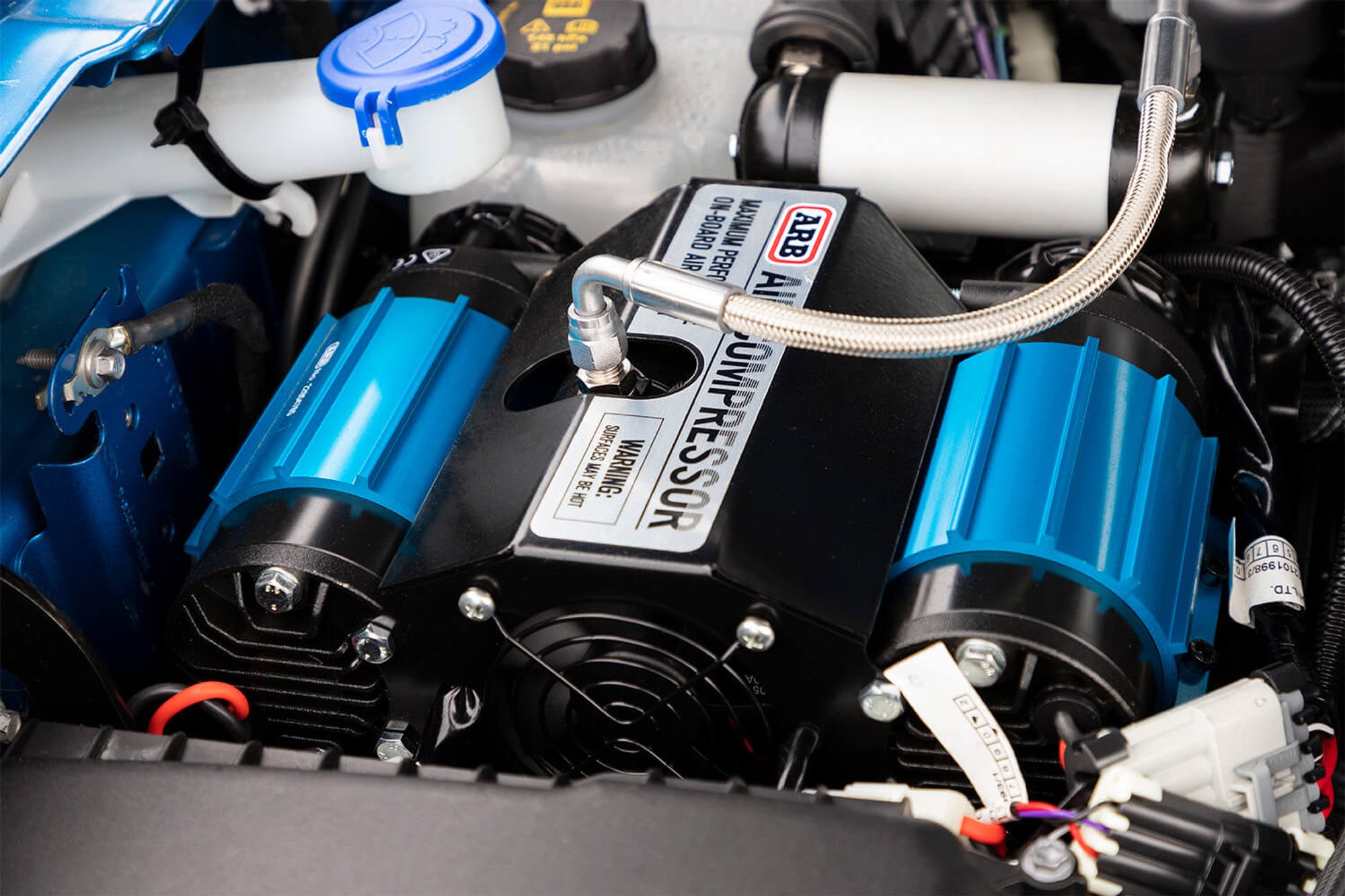

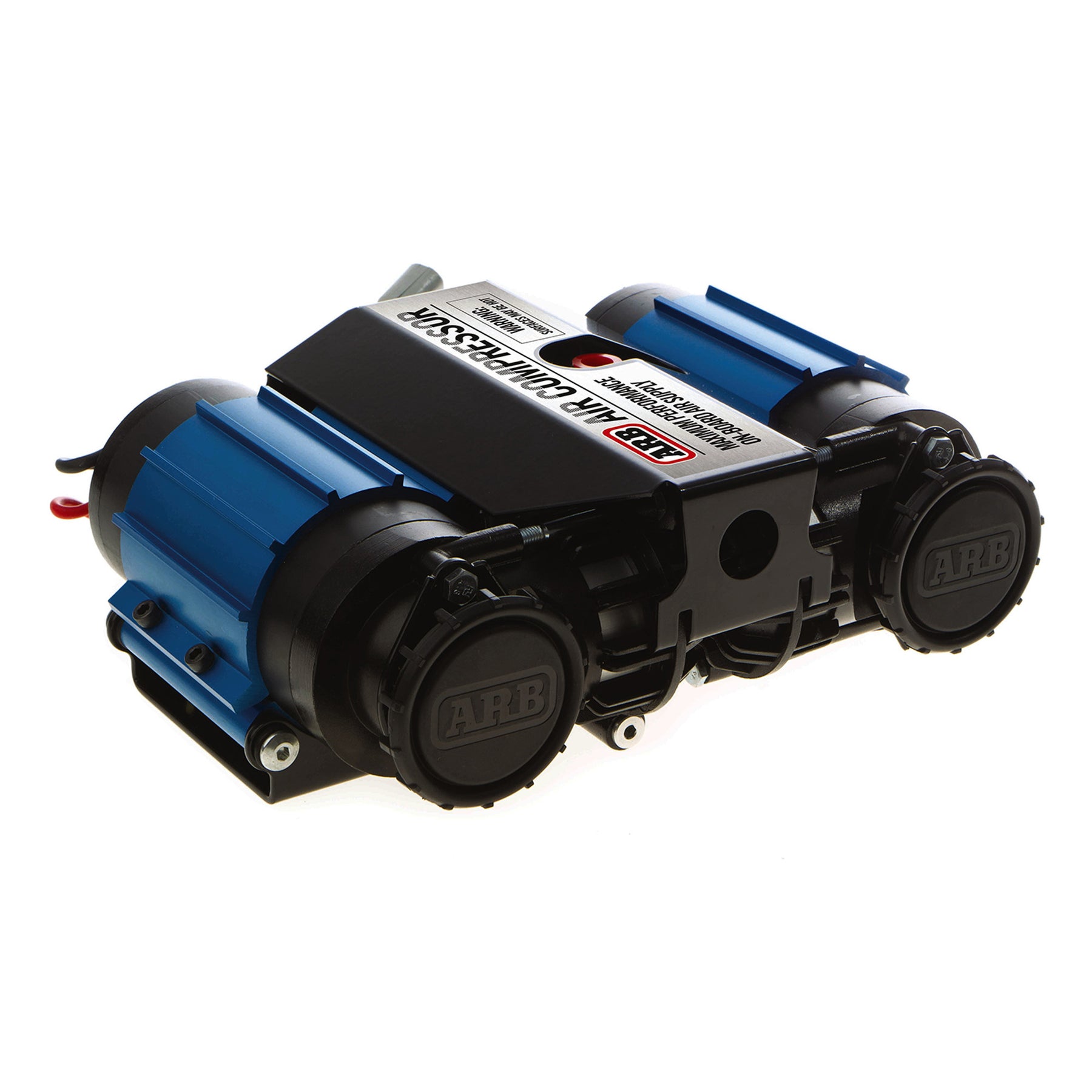

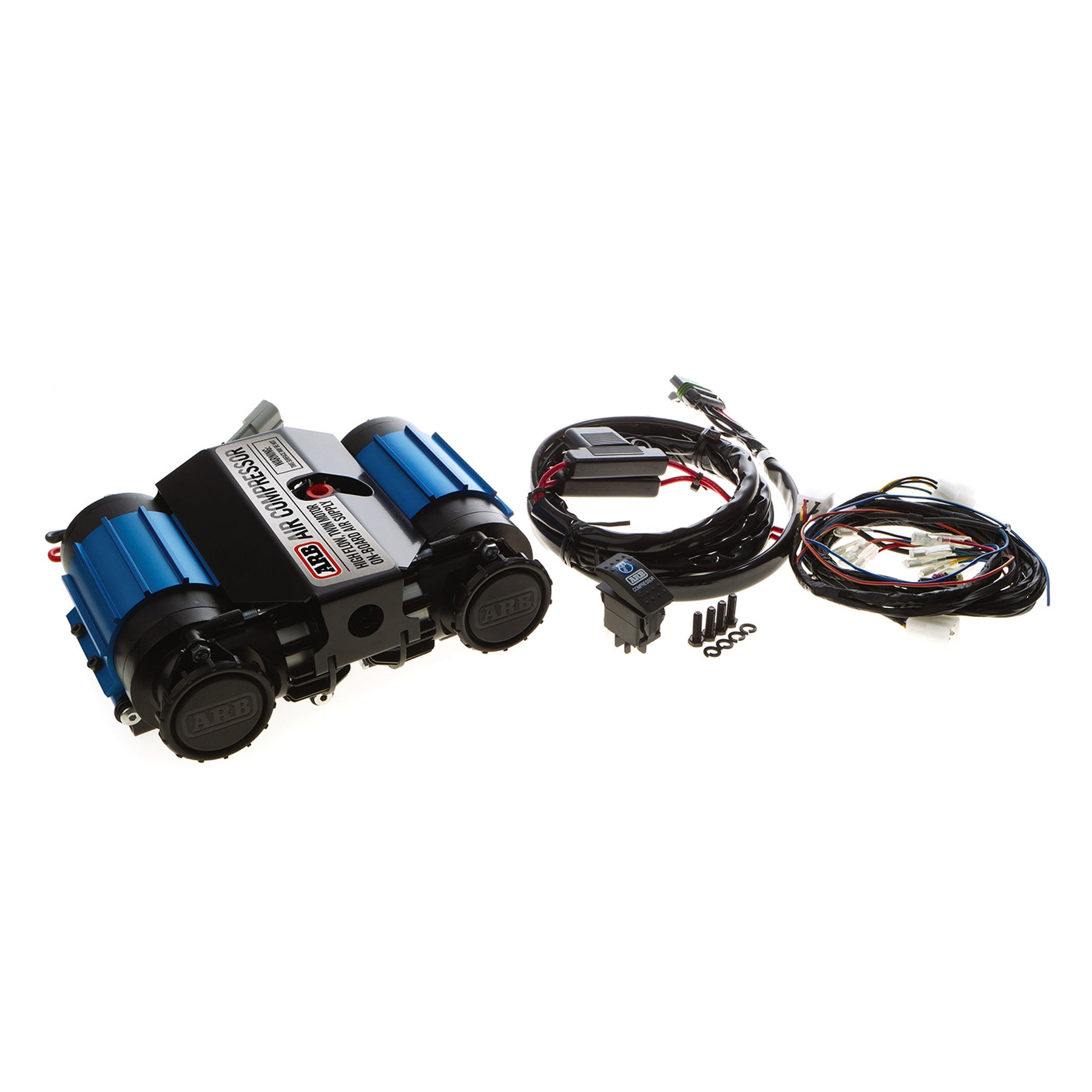

ARBs new CKMTA12 and CKMTA24 twin on-board compressor kits were designed to fill the market need for a compact sized yet high-volume compressed air source to suit the high volume airflow needs of most air powered tools, and also to suit the actuation and control needs of the ARB Air Locker , and the harsh and demanding environment of the ARB Air Locker user. ;

Features & Benefits

  • Designed for inflating Tires and Air Locker activation when used in conjunction with optional accessories
  • On-board model available in either a 12V or 24V configuration
  • Suitable for many air tools when used in conjunction with a 4L air tank (optional with on-board models)
  • 100% duty cycle
  • Sealed for moisture and dust resistance
  • Hard anodized cylinder bores for reduced friction
  • Teflon impregnated carbon fiber piston seals for maximum trouble free life
  • Anodized mounting bracket dissipates heat
  • Integrated pressure switch, relays and IP55 (waterproof/dustproof) brushless fan cools electronics, motors and cylinder heads
  • Over-pressure safety valve equipped



Specifications

  • Prop 65No
  • Volts12V
  • Width7.5 inch
  • Height4 inch
  • Length10.8 inch
  • Weight17.4 lb
  • Max Psi150
  • Max Amps68.6
  • IP RatingIP55
  • Duty Cycle100% 60/0
  • Air Flow 0PSI6.16CFM
  • Air Flow 29PSI4.68CFM
  • Warranty3 YR



Downloads
ARB 4x4 Accessories - ARB USA Warranty Booklet October 2020
CKMTA12_Installation Guide
c2bfabf3405bf
bb775bc4d28f5
CompressorTechnicalSpecifications
Master Compressor Specs Graph
