BDS 4" Lift Kit - 2015-2020 Ford F-150 4WD

BDS steps up the performance and capability of the 2015-2020 Ford F150 4WD trucks with 4-inch suspension lift kits. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

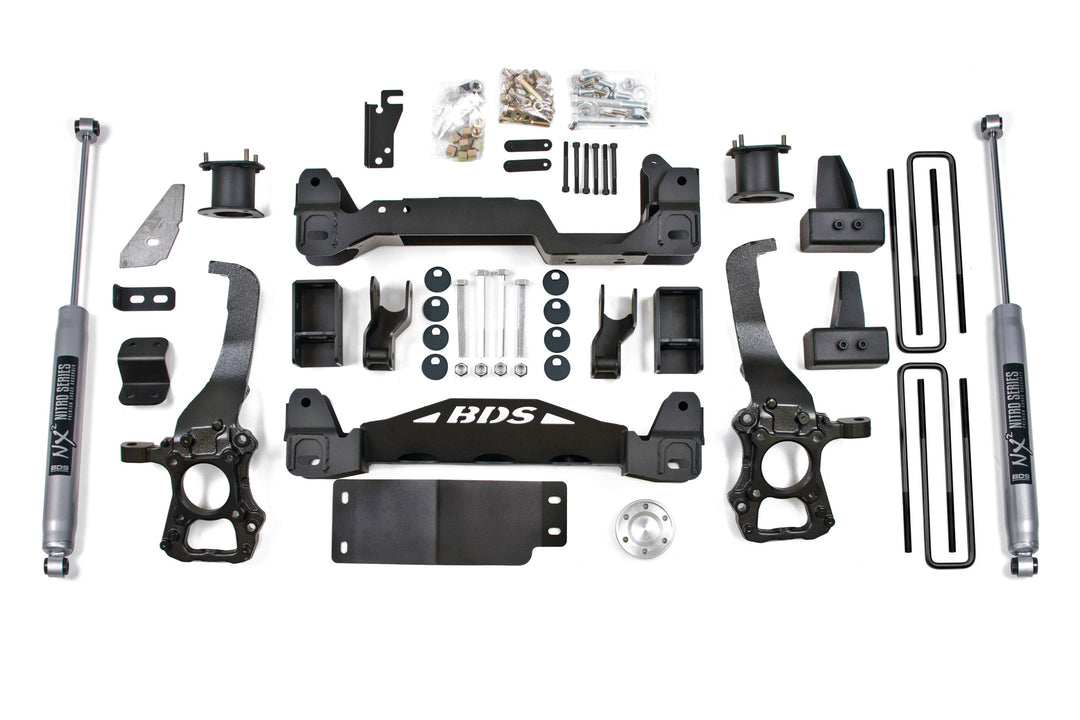

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.

High Clearance Crossmemebers

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles

Fitment

• Fits: 2015-2020 Ford F-150 4WD
• Engine: Diesel & Gas
• Lift Height: Front 4", Rear 3"
• Max Tire Size: 35 x 12.5
• Lift Method: Front: Cross-Member, Rear: Block

Authorized BDS Suspension dealer. Covered by the BDS No Fine Print Lifetime Warranty and Factory Protection Plus. Professional installation recommended.
