BDS 3.5" Lift Kit - 2019-2023 Ford Ranger 4WD (FOX 2.0 Coil-Over)

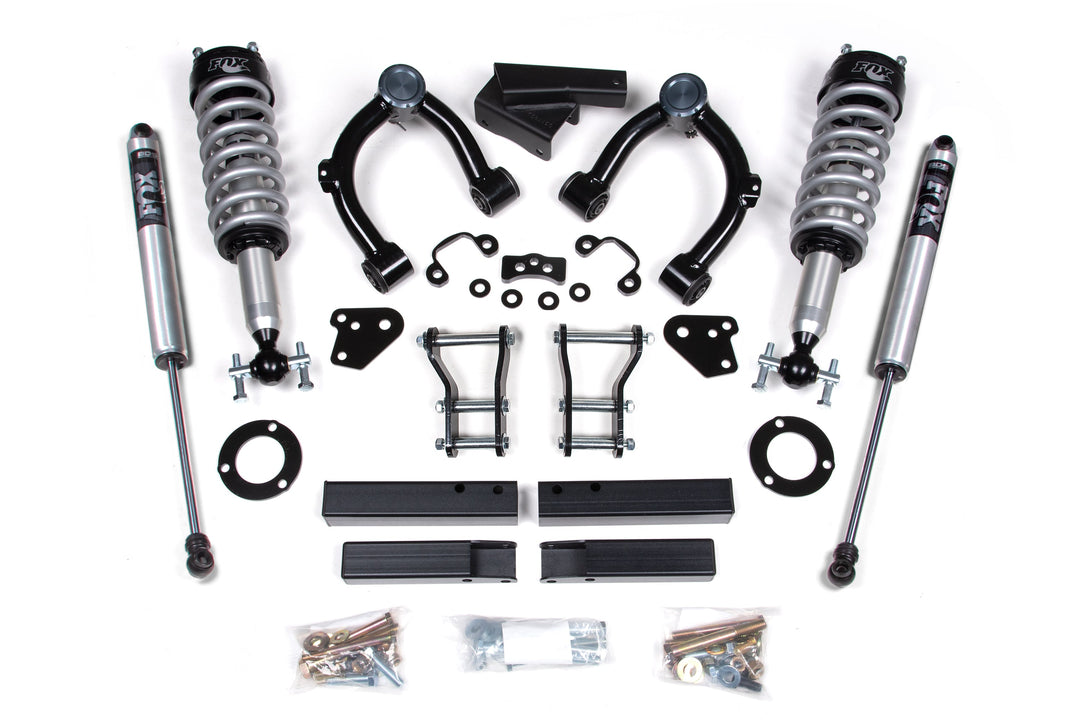

Take your 2019-2023 Ford Ranger truck to the next level with a 3.5-inch lift kit with FOX 2.0 Coil-Over shocks from BDS. Specially designed for the new Ranger, this 3.5" leveling kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop. To ensure proper drivetrain geometry the front differential is repositioned using relocation brackets. These brackets correct CV axle angle while allowing the use of the factory front skid plates. Also supplied for the front end are a pair of performance upper control arms (UCAs) designed for improved strength and suspension travel. Up front, the lift kit includes steel top mount strut spacers, pre-load spacers, differential relocation brackets and tubular upper control arms. In the rear, this kit includes heavy duty lift shackles and custom-tuned matching FOX 2.0 Performance series shocks. FOX 2.0 Coil-Over Shocks These FOX 2.0 Performance Series coil-overs bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut. They feature a 2.0" extruded and machined 6061 T6 aluminum body for better heat dispersion, along with an internal floating piston (IFP) to eliminate oil aeration, FOX's proprietary internals, 5/8" hard chrome plated heat treated alloy shaft and come preloaded with springs and top-plate for easy installation. HD Upper Control Arms (UCAs) Built for strength, performance and increased travel, these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth, quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Fitment

• Fits: 2019-2023 Ford Ranger 4WD
• Engine: Diesel & Gas
• Lift Height: Front 3.5", Rear 1"
• Max Tire Size: 285 / 65
• Lift Method: Front: Strut Spacer, Rear: Shackle

Important Fitment Notes

• They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment.

Authorized BDS Suspension dealer. Covered by the BDS No Fine Print Lifetime Warranty and Factory Protection Plus. Professional installation recommended.
