ICON Vehicle Dynamics Stage 8 Suspension System – Fits 2021–2026 Ford Bronco

Experience the ultimate upgrade in ride quality and off-road control with the ICON Vehicle Dynamics Stage 8 Suspension System, designed specifically for the 2021–2026 Ford Bronco. This high-performance suspension kit delivers superior damping, unmatched adjustability, and precision engineering that transforms how your Bronco handles both on and off the road.

Built with ICON’s advanced CDEV (Compression Damping Electronic Valve) technology, this system allows for on-the-fly tuning of your shocks at any speed or terrain. The ICON Intelligent Control (IIC) system automatically reads the terrain through onboard sensors and adjusts shock compression instantly, providing the perfect balance between comfort and control. Once set up through the wireless IIC app on your iPhone, it functions automatically—no manual input required while driving.

The Stage 8 kit includes ICON’s remote reservoir coilovers with custom valving for 2–3 inches of front lift and 1.25–2.25 inches of rear lift on Sasquatch-equipped 4-door Broncos. The reservoirs increase oil capacity and cooling to prevent overheating or cavitation during aggressive use, ensuring consistent performance in the harshest environments.

This kit also includes heavy-duty Tubular Upper Control Arms featuring ICON’s patented Delta Joint PRO, offering 90 degrees of total articulation and improved alignment for better drivability. The rear suspension package includes tubular upper and lower links plus an adjustable rear track bar, allowing for precise pinion angle adjustment, reduced suspension bind, and improved clearance around the fuel tank. The rear coilovers are mounted shaft-up with triple-rate springs to maximize travel and ride quality.

When paired with 35x12.50 tires, this system delivers up to 11.5 inches of front travel and 14 inches of rear travel. It can also accommodate 37-inch tires with optional up-travel limiters (sold separately).

Key Features

• Fits 2021–2026 Ford Bronco (Excludes Raptor)

• Up to 11.5" front and 14" rear suspension travel

• Adjustable 2–3" front lift and 1.25–2.25" rear lift (Sasquatch models)

• Intelligent electronic damping via ICON’s IIC and CDEV system

• Wireless smartphone control through the IIC app (iOS required)

• 6061 aircraft-grade aluminum CNC-machined components

• PTFE-lined spherical bearings and corrosion-resistant coilover bodies

• Tubular upper control arms with Delta Joint PRO for full articulation

• Adjustable rear track bar and tubular rear links for articulation and alignment

• 100% bolt-on installation—no cutting, drilling, or welding required

Recommended Fitment

• Works with OEM wheels and tires

• Ideal aftermarket fitment:

  • 17x8.5" wheels with 4.75” backspace / 0mm offset

  • 18x9" or 20x9" wheels with 5.00” backspace / 0mm offset

• Recommended tire size: 35x12.50 (37” tires require optional bump stop spacers and minor trimming)

Notes

• Designed for Sasquatch-equipped Broncos; two-door models may sit slightly taller.

• Compatible with ICON and OE steering components; other aftermarket parts may vary.

• Rear reservoir brackets may interfere with certain aftermarket step or rock slider mounts.

• Coil springs are tuned for near-stock weight Broncos; for heavier setups, consider ICON part K40018TX.

• Not compatible with Bronco Raptor.

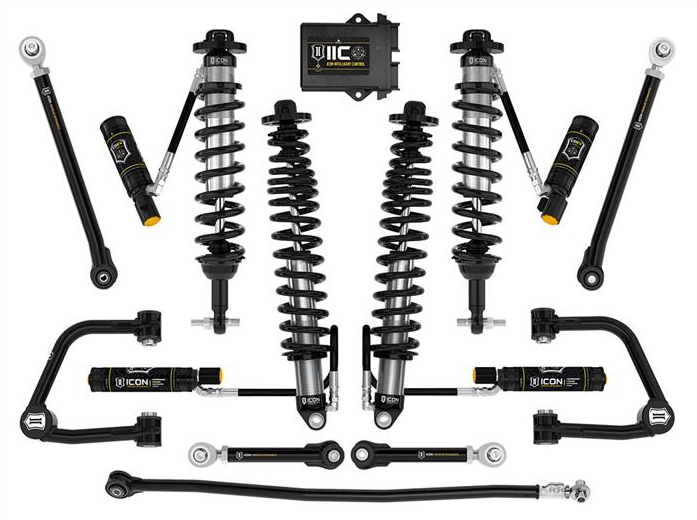

Kit Components

• Front 2.5 VS Remote Reservoir CDEV Coilover Kit

• Tubular Upper Control Arm Kit with Delta Joint PRO

• Tubular Rear Upper and Lower Link Kits

• Rear Hose Route Kit

• Adjustable Rear Track Bar Kit

• IIC Install Kit

• Rear 2.5 VS Remote Reservoir CDEV Coilover Kit

Fits: 2021-2026 Bronco
